2-480711-0 | AMP

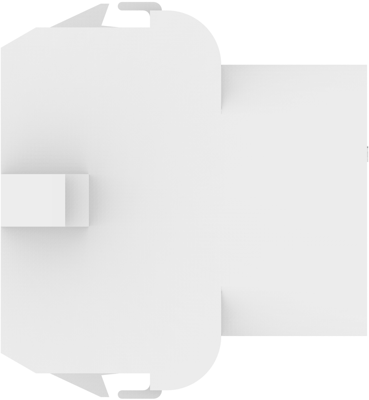

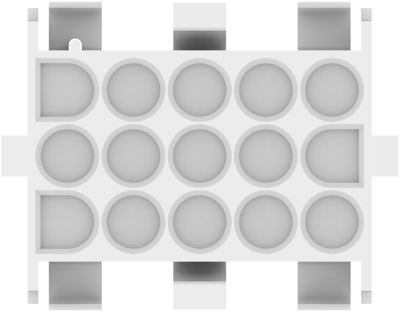

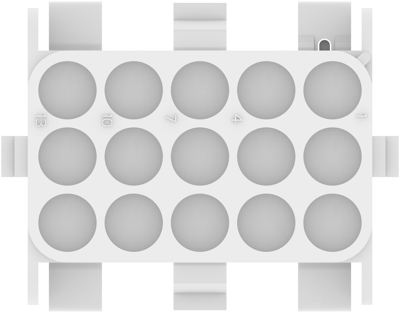

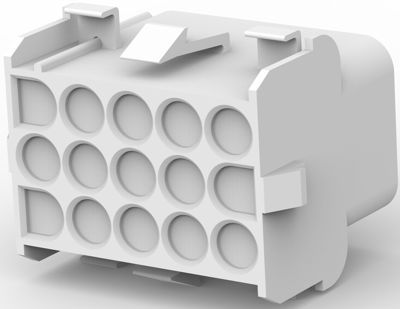

Socket housing, 15 pole, pitch 6.35 mm, straight, natural, 2-480711-0
Unit Price (€ / pc.)
2.7251 € *
Standard delivery time from the manufacturer is: 27 Weeks
PCB Connection System, 2-480711-0, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 15 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 15
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Grid | 6.35 mm | |
| Pin number | 15 pole | |
| Version | socket housing | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Number of rows | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
