2-480700-0 | AMP

Plug housing, 3 pole, pitch 6.35 mm, straight, natural, 2-480700-0

Order No.: 35P4944
EAN: 4099889935912
MPN:
2-480700-0

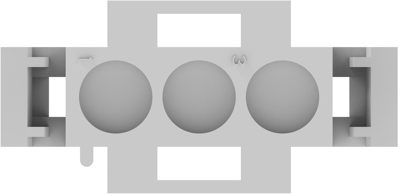

2-480700-0 AMP PCB Connection Systems Image 1

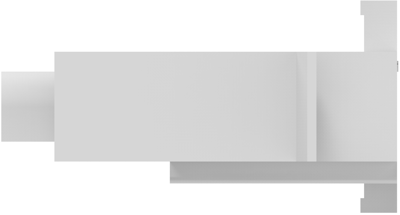

2-480700-0 AMP PCB Connection Systems Image 2

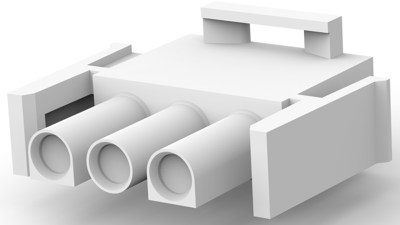

2-480700-0 AMP PCB Connection Systems Image 3

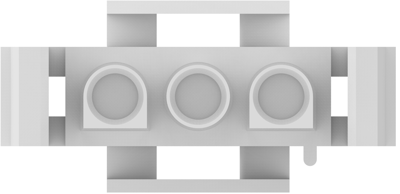

2-480700-0 AMP PCB Connection Systems Image 4

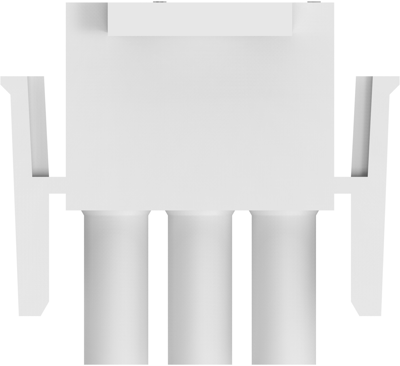

2-480700-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0234 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
332.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
325 pcs.
1.0234 €

PCB Connection System, 2-480700-0, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
Grid 6.35 mm
Pin number 3 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
