2-353046-3 | AMP

Plug housing, 3 pole, pitch 10.16 mm, straight, black, 2-353046-3

Order No.: 38P7431
EAN: 4099889976564
MPN:
2-353046-3
Series: DYNAMIC

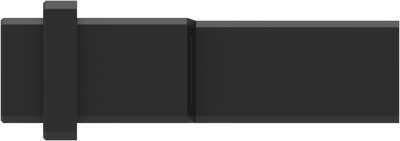

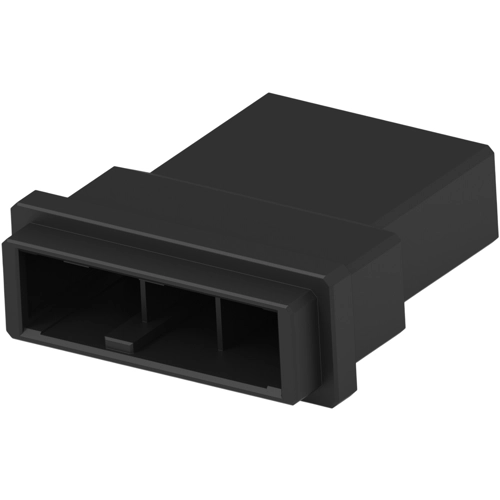

2-353046-3 AMP PCB Connection Systems Image 1

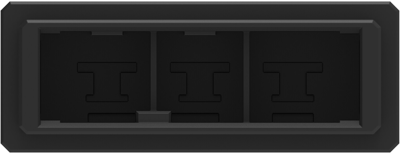

2-353046-3 AMP PCB Connection Systems Image 2

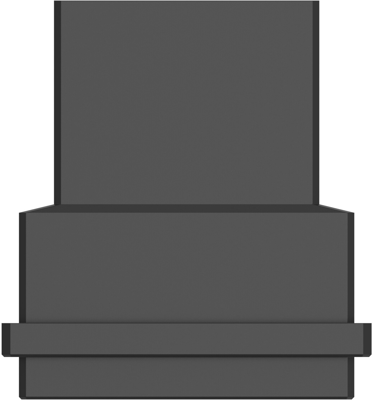

2-353046-3 AMP PCB Connection Systems Image 3

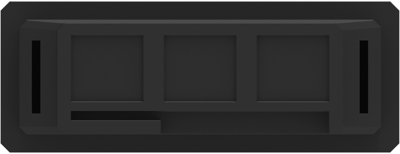

2-353046-3 AMP PCB Connection Systems Image 4

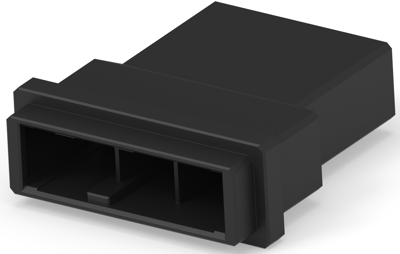

2-353046-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5109 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1,255.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.5109 €

PCB Connection System, 2-353046-3, AMP

Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated voltage 630 V
Version plug housing
Number of rows 1
Orientation straight
Additional parts unequipped
Pin number 3 pole
Grid 10.16 mm
Type of locking Yes
Contact type pin
Colour black
Connection crimp connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85389091
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
