2-316131-2 | AMP

Pin header, 6 pole, pitch 5.08 mm, angled, black, 2-316131-2

Order No.: 71P6500
EAN: 4099891728212
MPN:
2-316131-2
Series: Dynamic 3000

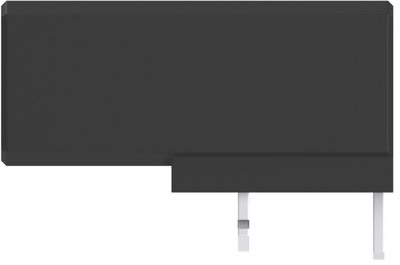

2-316131-2 AMP PCB Connection Systems Image 1

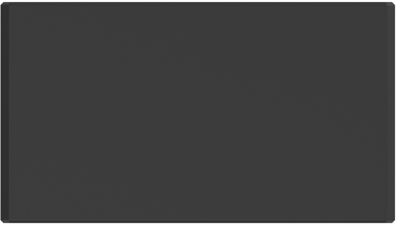

2-316131-2 AMP PCB Connection Systems Image 2

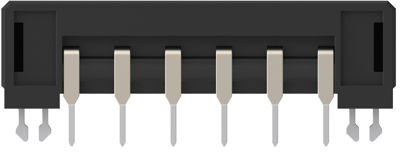

2-316131-2 AMP PCB Connection Systems Image 3

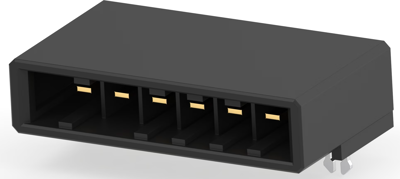

2-316131-2 AMP PCB Connection Systems Image 4

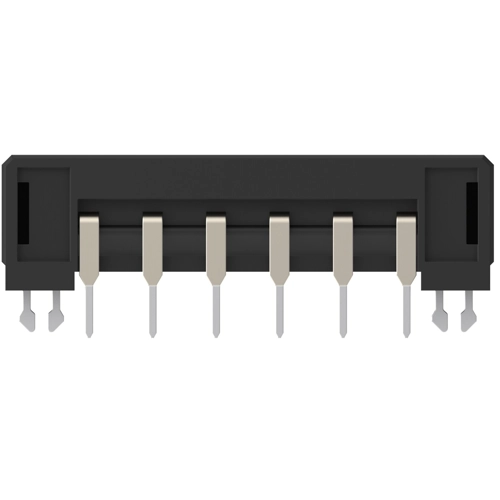

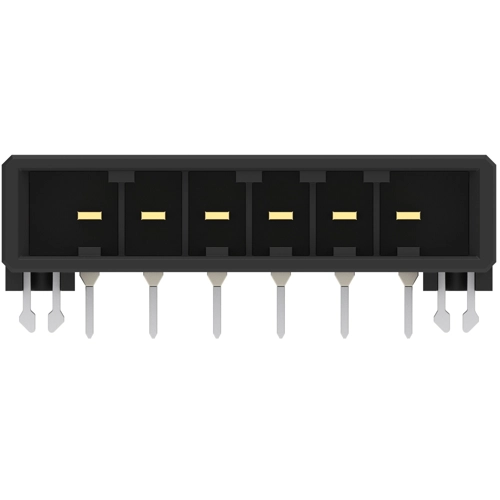

2-316131-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
7.3780 € *
Available in 5 Days: 4,618 pcs. - if ordered today
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3780 €
5 pcs.
6.9972 €
10 pcs.
6.5450 €
25 pcs.
5.9619 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Header, 2-316131-2, AMP

PCB Mount header, Horizontal, Wire-to-Board, 6 Position, 5.08 mm Centerline, Fully shrouded, Gold, Through Hole-Solder.

Applications

  • Industrial Control
  • Production Equipment
  • Servo Drives
  • Power Distribution
  • Industrial Process Controls
  • Numeric Controllers
Technical specifications
Filter Property Value
Connection plating tin-plated
Grid 5.08 mm
Orientation angled
Connection solder connection
Contact type pin
Rated current 15 A
Additional parts equipped
Version pin header
Pin number 6 pole
Type of locking Yes
contact surface gold-plated
Number of rows 1
Colour black
Rated voltage 600 V
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
