2-292156-6 | AMP

Pin header, 6 pole, pitch 2 mm, straight, blue, 2-292156-6

Order No.: 71P6345
EAN: 4099891727697
MPN:
2-292156-6
Series: CT

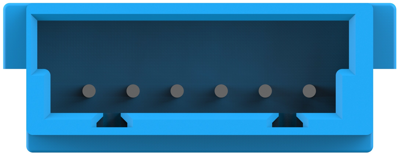

2-292156-6 AMP PCB Connection Systems Image 1

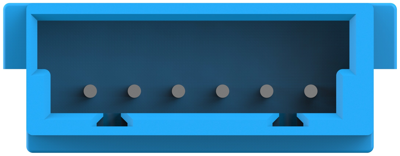

2-292156-6 AMP PCB Connection Systems Image 2

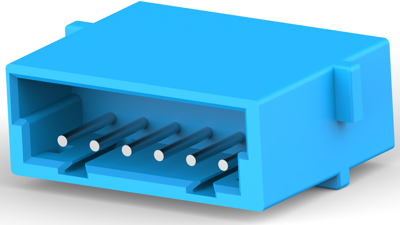

2-292156-6 AMP PCB Connection Systems Image 3

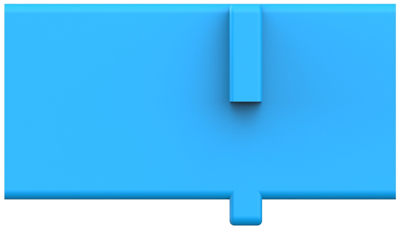

2-292156-6 AMP PCB Connection Systems Image 4

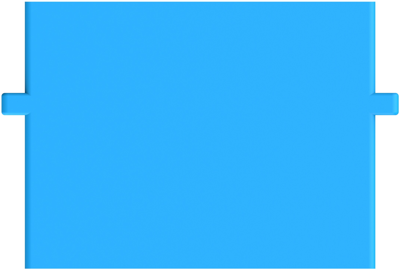

2-292156-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9877 € *
Available in 5 Days: 9,950 pcs. - if ordered today
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.9163 €
25 pcs.
0.8568 €
50 pcs.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector assembly, 2-292156-6, AMP

Connector assembly, Plug to Plug Relay header, Wire-to-Board/Wire-to-Wire, 6 Position, 2 mm Centerline, 1 Row, Blue, Signal.

Applications

  • Business Equipment
  • Industrial Machines
  • PC
  • Audio
Technical specifications
Filter Property Value
Connection solder pin
Colour blue
Additional parts equipped
Pin number 6 pole
Contact type pin
Orientation straight
Rated voltage 125 V
contact surface tin-plated
Version pin header
Rated current 2 A
Number of rows 1
Grid 2 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Melamine
SVHC free No
Date of RoHS guidelines 3/31/15
