2-2316952-0 | AMP

Pin header, 10 pole, pitch 3.96 mm, straight, natural, 2-2316952-0

Order No.: 71P5922
EAN: 4099891727239
MPN:
2-2316952-0
Series: Economy Power

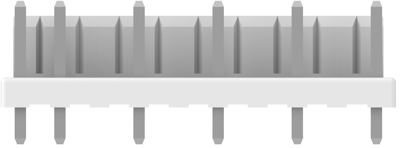

2-2316952-0 AMP PCB Connection Systems Image 1

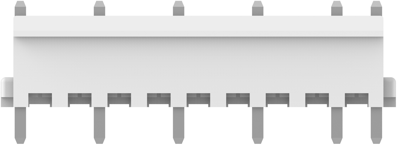

2-2316952-0 AMP PCB Connection Systems Image 2

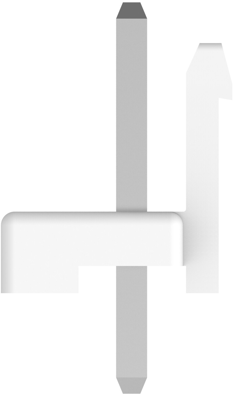

2-2316952-0 AMP PCB Connection Systems Image 3

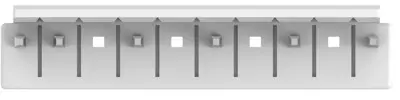

2-2316952-0 AMP PCB Connection Systems Image 4

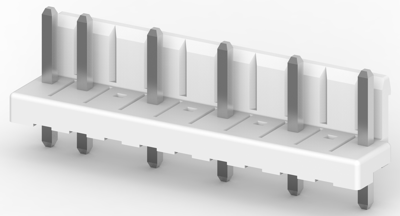

2-2316952-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Available in 5 Days: 2,000 pcs. - if ordered today
Total Price:
223.13 € *
Price list
Quantity
Price per unit*
250 pcs.
0.8925 €
700 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 2-2316952-0, AMP

Rectangular power connector, Header, Plug, Wire-to-Board, 10 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection solder connection
Colour natural
Additional parts equipped
Pin number 10 pole
Contact type pin
Orientation straight
Type of locking Yes
Rated voltage 250 V
contact surface tin-plated
Version pin header
Rated current 8 A
Number of rows 1
Grid 3.96 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
