2-2314924-0 | AMP

Socket header, 20 pole, pitch 2 mm, straight, black, 2-2314924-0

Order No.: 59F835
MPN:
2-2314924-0
Series: AMPMODU

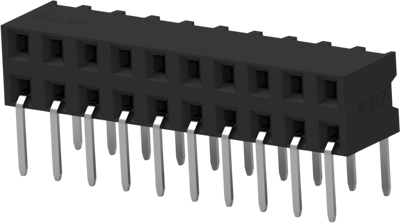

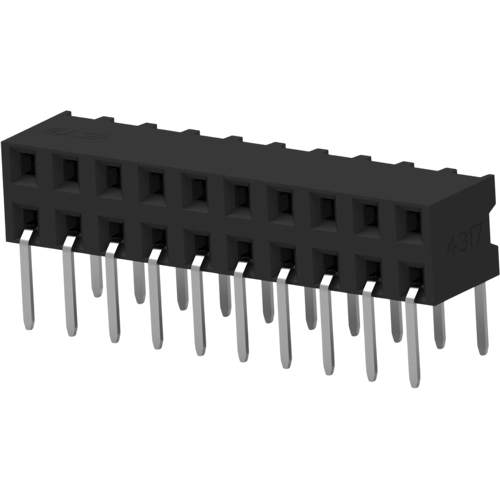

2-2314924-0 AMP PCB Connection Systems Image 1

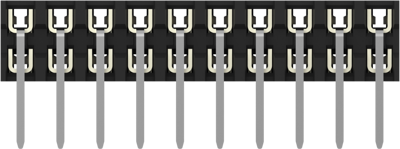

2-2314924-0 AMP PCB Connection Systems Image 2

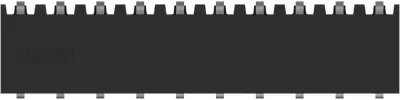

2-2314924-0 AMP PCB Connection Systems Image 3

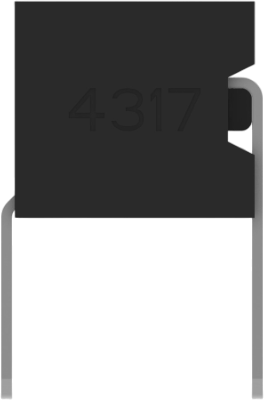

2-2314924-0 AMP PCB Connection Systems Image 4

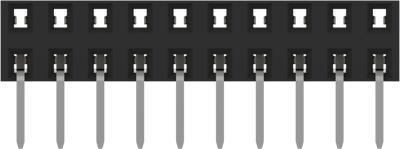

2-2314924-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.8322 € *
Available in 5 Days: 3,200 pcs. - if ordered today
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8322 €
10 pcs.
2.6299 €
50 pcs.
2.4276 €
100 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 2-2314924-0, TE Connectivity

PCB Mount Receptacle, Horizontal, Board-to-Board, 20 Position, 2 mm Centerline, Gold Flash, Through Hole - Solder, Signal, AMPMODU 2 mm.

Technical specifications
Connection plating tin-plated
Rated voltage 125 V
Version socket header
contact surface gold-plated
Connection solder connection
Contact type socket
Rated current 2 A
Pin number 20 pole
Colour black
Type of locking Yes
Orientation straight
Number of rows 2
Grid 2 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
