2-215460-0 | AMP

Socket header, 20 pole, pitch 1.27 mm, angled, red, 2-215460-0

Order No.: 58F4216
EAN: 4099891002565
MPN:
2-215460-0
Series: Micro-MaTch

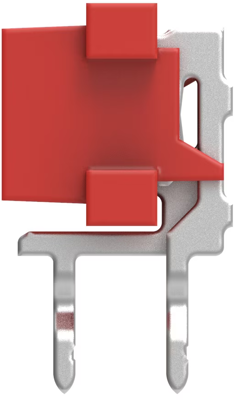

2-215460-0 AMP PCB Connection Systems Image 1

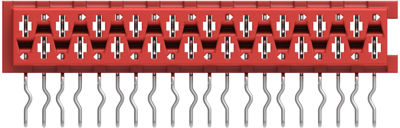

2-215460-0 AMP PCB Connection Systems Image 2

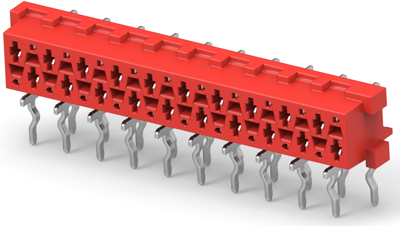

2-215460-0 AMP PCB Connection Systems Image 3

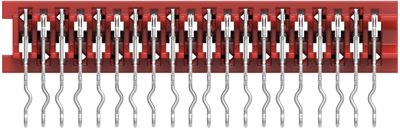

2-215460-0 AMP PCB Connection Systems Image 4

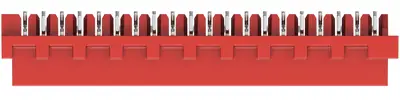

2-215460-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5827 € *
Available in 5 Days: 7,500 pcs. - if ordered today
Total Price:
3,956.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
1.5827 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

PCB female connectors, angled

For PCB mounting.

Technical attributes (type, number of poles): 2-0215460-0, 20-pole

Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 1.5 A
Grid 1.27 mm
Pin number 20 pole
Version socket header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type socket
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
