2-215083-0 | AMP

Pin header, 20 pole, pitch 1.27 mm, straight, red, 2-215083-0

Order No.: 58F4256
EAN: 4099891002763
MPN:
2-215083-0
2-0215083-0
Series: Micro-MaTch

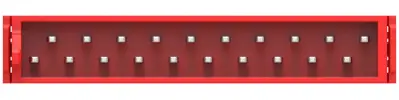

2-215083-0 AMP PCB Connection Systems Image 1

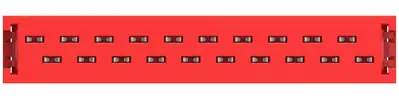

2-215083-0 AMP PCB Connection Systems Image 2

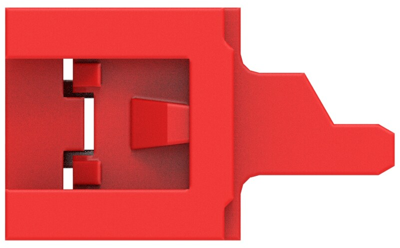

2-215083-0 AMP PCB Connection Systems Image 3

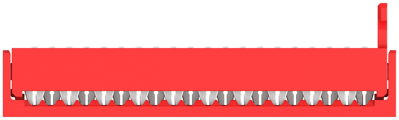

2-215083-0 AMP PCB Connection Systems Image 4

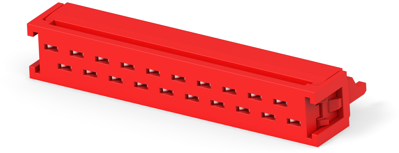

2-215083-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available: 1,666 pcs.
Next delivery: 2,500 pcs. on 2025-10-28
Available in 5 Days: 5,000 pcs. - if ordered today
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2495 €
25 pcs.
1.1662 €
50 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Male-on-wire connectors.

Technical attributes (type, number of poles): 2-0215083-0, 20-pole

Technical specifications
Filter Property Value
Rated current 1.5 A
contact surface tin-plated
Colour red
Additional parts equipped
Contact type pin
Connection plating tin-plated
Grid 1.27 mm
Orientation straight
Rated voltage 100 V
Connection IDC connection
Pin number 20 pole
Version pin header
Number of rows 2
Logistics
Property Value
Customs tariff number 85366990
Original Packaging Reel with 2,500 pieces
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
