2-215079-0 | AMP

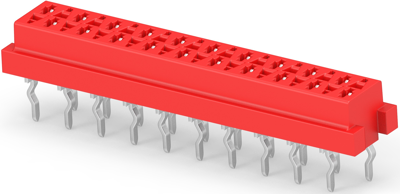

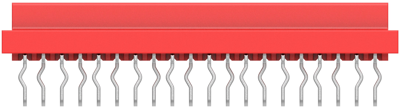

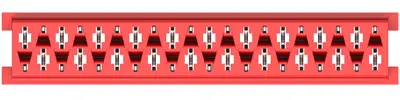

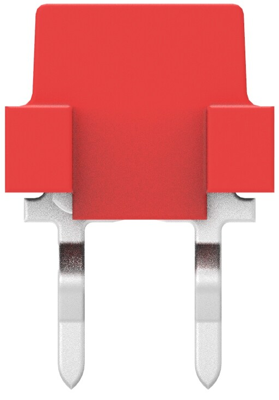

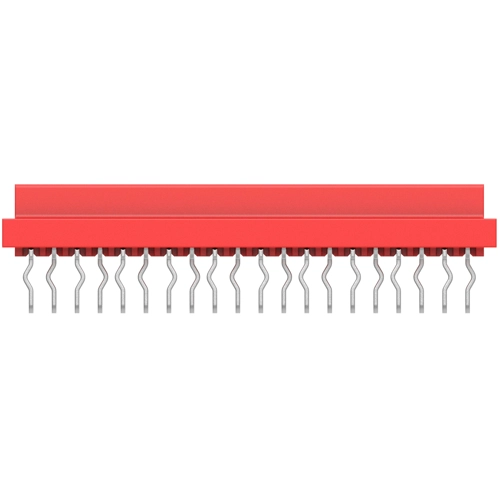

Socket header, 20 pole, pitch 1.27 mm, straight, red, 2-215079-0
Unit Price (€ / pc.)
1.7612 € *
Available in 5 Days: 5,000 pcs. - if ordered today
Total Price:
8.81 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7612 €
10 pcs.
1.6303 €
25 pcs.
1.5232 €
50 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
Female connectors, straight
For PCB mounting.
Technical attributes (type, number of poles): 2-0215079-0, 20-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Version | socket header | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Rated voltage | 100 V | |
| Type of locking | Yes | |
| Colour | red | |
| Pin number | 20 pole | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Contact type | socket | |
| Rated current | 1 A | |
| Number of rows | 2 | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
