2-179958-4 | AMP

Socket header, 4 pole, pitch 10.16 mm, straight, black, 2-179958-4

Order No.: 38P7425
EAN: 4099889976502
MPN:
2-179958-4
Series: DYNAMIC

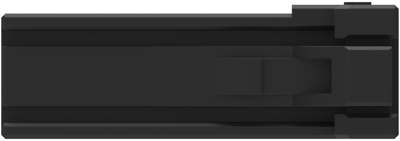

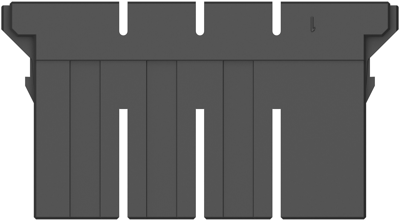

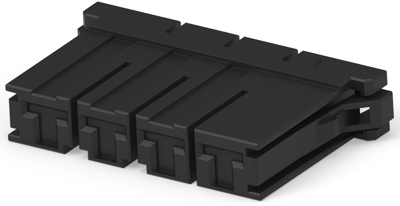

2-179958-4 AMP PCB Connection Systems Image 1
2-179958-4 AMP PCB Connection Systems Image 2
2-179958-4 AMP PCB Connection Systems Image 3
2-179958-4 AMP PCB Connection Systems Image 4
2-179958-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.2487 € *
Available in 5 Days: 3,374 pcs. - if ordered today
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
3.0226 €
25 pcs.
2.8203 €
50 pcs.
2.5585 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-179958-4, AMP

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Contact type socket
Orientation straight
Rated voltage 150 V
Additional parts unequipped
Version socket header
Rated current 30 A
Grid 10.16 mm
Colour black
Connection crimp connection
Number of rows 1
Pin number 4 pole
Logistics
Property Value
Country of origin CN
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
