2-179553-4 | AMP

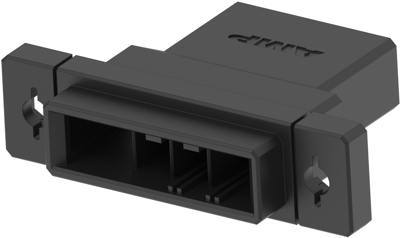

Plug housing, 4 pole, pitch 5.08 mm, straight, black, 2-179553-4
Unit Price (€ / pc.)
2.2015 € *
Available in 5 Days: 750 pcs. - if ordered today
PCB Connection System, 2-179553-4, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Colour | black | |
| Contact type | pin | |
| Additional parts | unequipped | |
| Rated current | 3 A | |
| Rated voltage | 150 V | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Version | plug housing | |
| Grid | 5.08 mm |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
