2-179553-2 | AMP

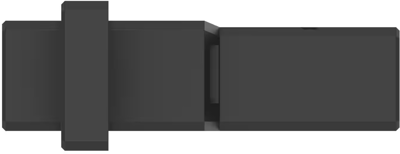

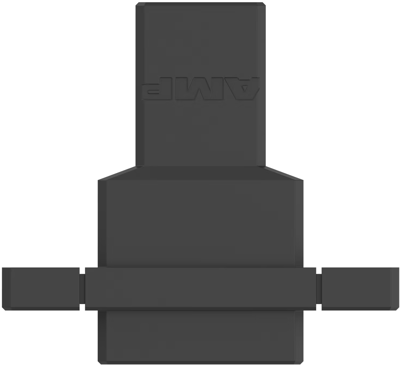

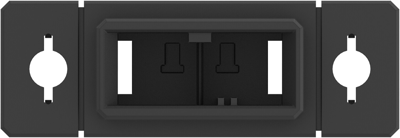

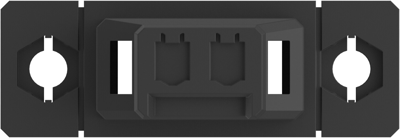

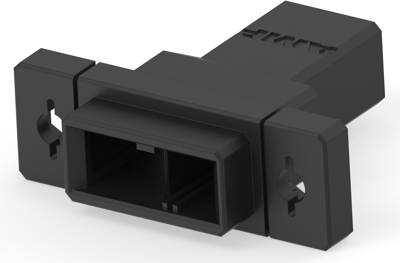

Plug housing, 2 pole, pitch 5.08 mm, straight, black, 2-179553-2
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 13 Weeks
PCB Connection System, 2-179553-2, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 150 V | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Version | plug housing | |
| Colour | black | |
| Grid | 5.08 mm | |
| Rated current | 3 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
