2-179552-4 | AMP

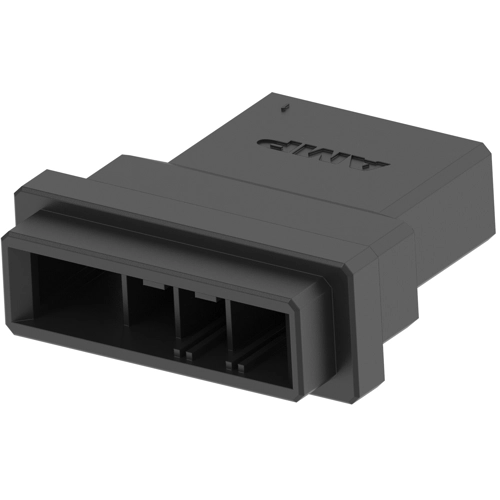

Plug housing, 4 pole, pitch 5.08 mm, straight, black, 2-179552-4
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 24 Weeks
PCB Connection System, 2-179552-4, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Pin number | 4 pole | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 3 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
