2-179552-2 | AMP

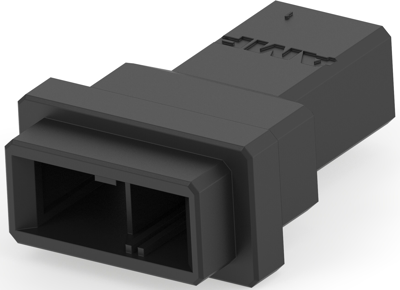

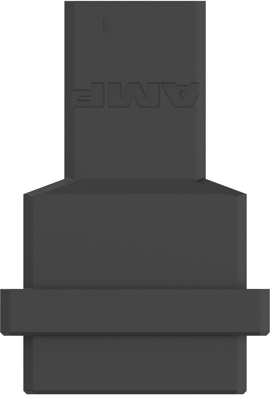

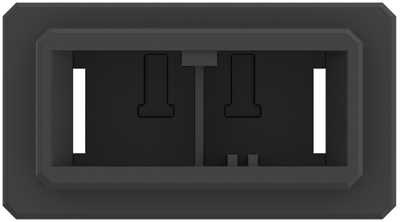

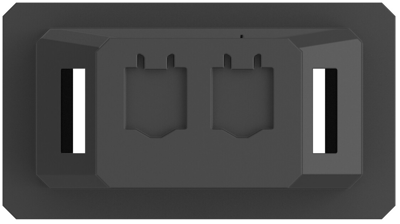

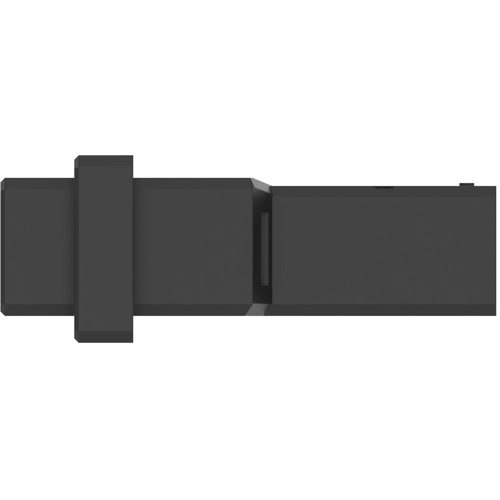

Plug housing, 2 pole, pitch 5.08 mm, straight, black, 2-179552-2
Unit Price (€ / pc.)
2.0468 € *
Available in 5 Days: 5,694 pcs. - if ordered today
Total Price:
10.23 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0468 €
10 pcs.
1.8921 €
25 pcs.
1.7612 €
50 pcs.
1.5946 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-179552-2, AMP
Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact type | pin | |
| Version | plug housing | |
| Rated current | 3 A | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 2 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
