2-1761711-3 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, blue, 2-1761711-3

Order No.: 36P5164
EAN: 4099889941487
MPN:
2-1761711-3
Series: AMP-LATCH

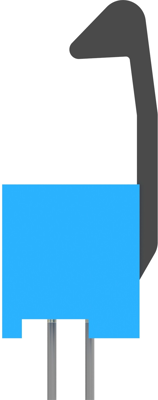

2-1761711-3 AMP PCB Connection Systems Image 1

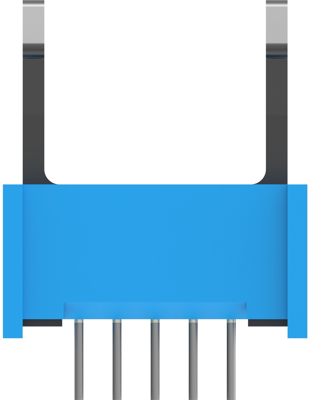

2-1761711-3 AMP PCB Connection Systems Image 2

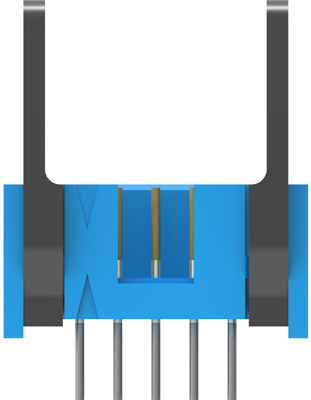

2-1761711-3 AMP PCB Connection Systems Image 3

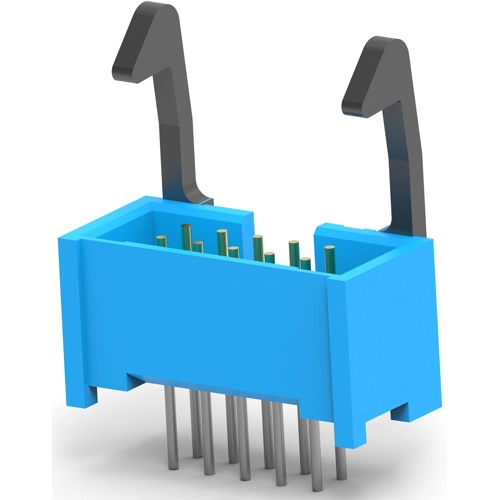

2-1761711-3 AMP PCB Connection Systems Image 4

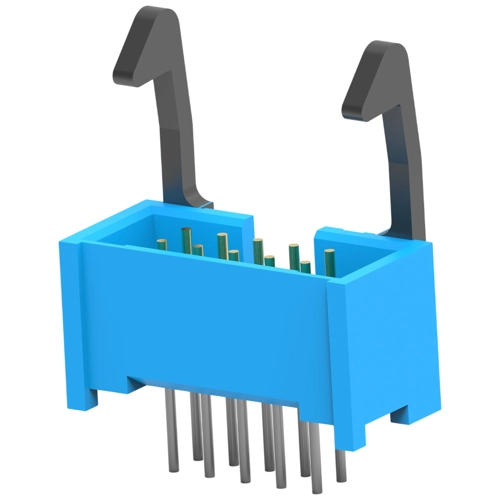

2-1761711-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,261.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.5228 €

PCB Connection System, 2-1761711-3, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 10
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Version pin header
Colour blue
Type of locking Yes
Pin number 10 pole
Additional parts equipped
Connection PCB connection
Connection plating tin-plated
Rated voltage 150 V
Contact type pin
Rated current 1 A
contact surface gold-plated
Orientation straight
Grid 2.54 mm
Number of rows 2
Logistics
Property Value
Country of origin JP
Customs tariff number 85366910
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
