2-1761679-3 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, blue, 2-1761679-3

Order No.: 36P5249
EAN: 4099889942194
MPN:
2-1761679-3
Series: AMP-LATCH

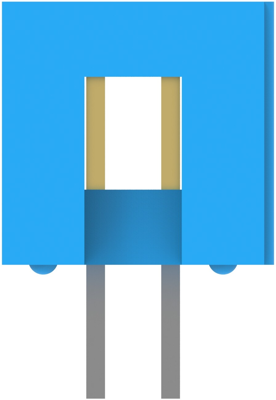

2-1761679-3 AMP PCB Connection Systems Image 1

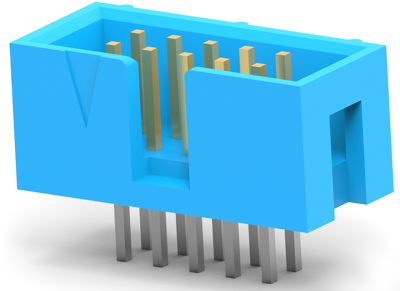

2-1761679-3 AMP PCB Connection Systems Image 2

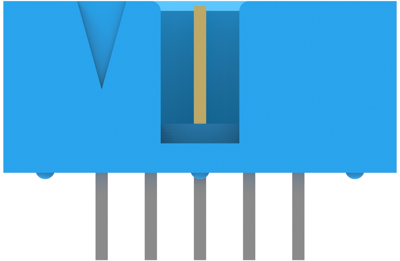

2-1761679-3 AMP PCB Connection Systems Image 3

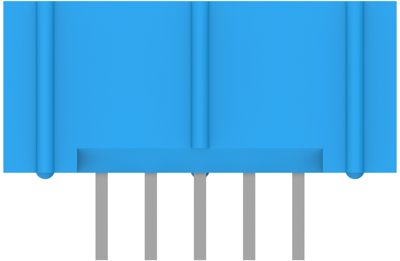

2-1761679-3 AMP PCB Connection Systems Image 4

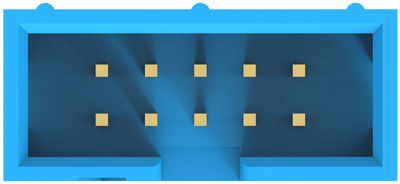

2-1761679-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6422 € *
Available: 200 pcs.
Available in 5 Days: 6,563 pcs. - if ordered today
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
5 pcs.
1.6422 €
10 pcs.
1.5232 €
25 pcs.
1.4161 €
50 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1761679-3, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 1 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour blue
Pin number 10 pole
Connection PCB connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
