2-1761608-5 | AMP

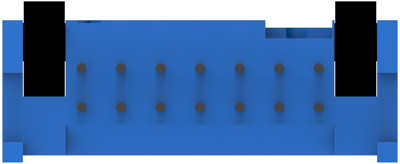

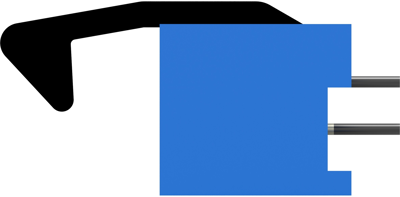

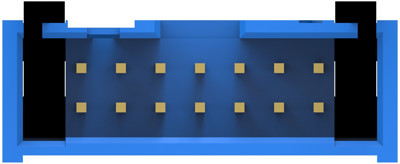

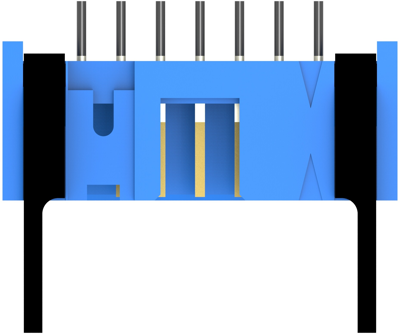

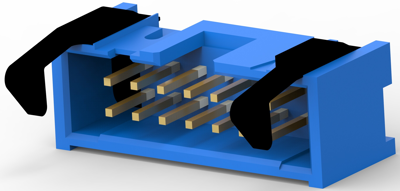

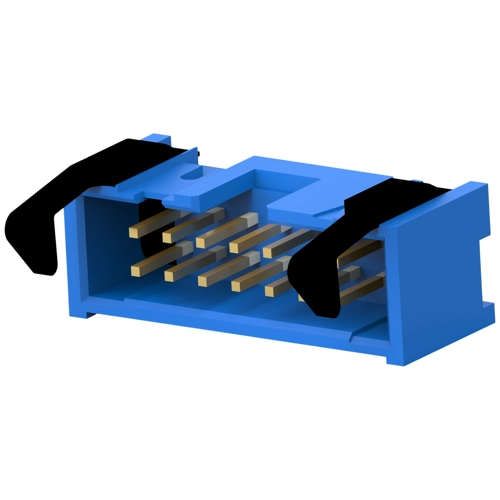

Pin header, 14 pole, pitch 2.54 mm, straight, blue, 2-1761608-5
Unit Price (€ / pc.)
6.8901 € *
Available in 5 Days: 3,080 pcs. - if ordered today
Total Price:
6.89 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8901 €
10 pcs.
6.3427 €
50 pcs.
5.7120 €
100 pcs.
5.1408 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-1761608-5, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 14 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT
- Housing Color: blue
- Orientation: straight
- Number of positions: 14
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 1000 - 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Colour | blue | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 1 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 14 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
