2-1761607-3 | AMP

Pin header, 10 pole, pitch 2.54 mm, angled, blue, 2-1761607-3

Order No.: 36P5160
EAN: 4099889941449
MPN:
2-1761607-3
Series: AMP-LATCH

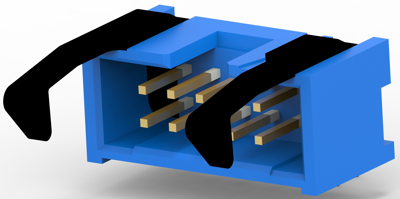

2-1761607-3 AMP PCB Connection Systems Image 1

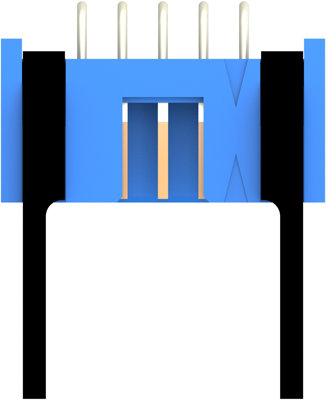

2-1761607-3 AMP PCB Connection Systems Image 2

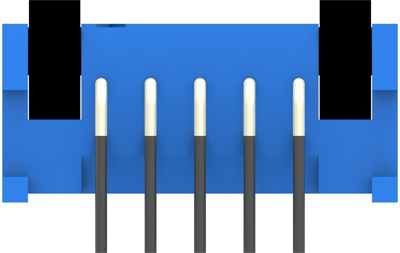

2-1761607-3 AMP PCB Connection Systems Image 3

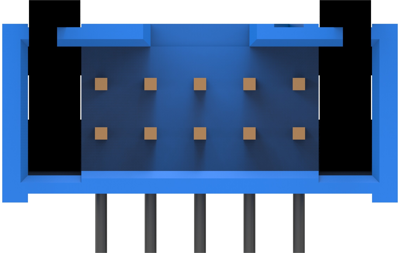

2-1761607-3 AMP PCB Connection Systems Image 4

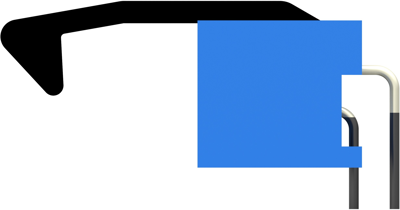

2-1761607-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Available in 5 Days: 562 pcs. - if ordered today
Total Price:
1,422.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
312 pcs.
4.5577 €

PCB Connection System, 2-1761607-3, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: angled
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 1 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour blue
Pin number 10 pole
Connection PCB connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
