2-1761606-1 | AMP

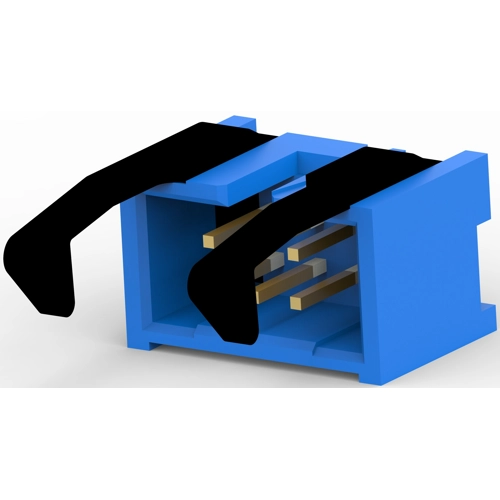

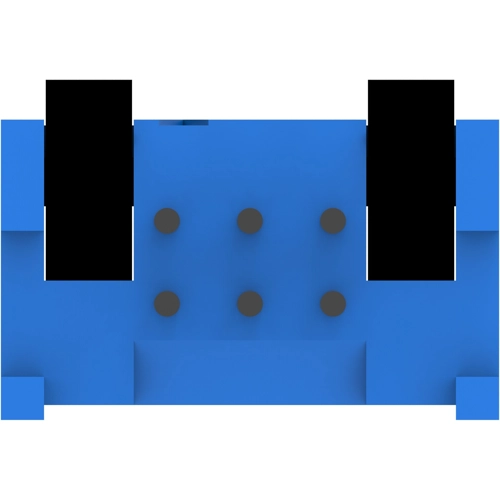

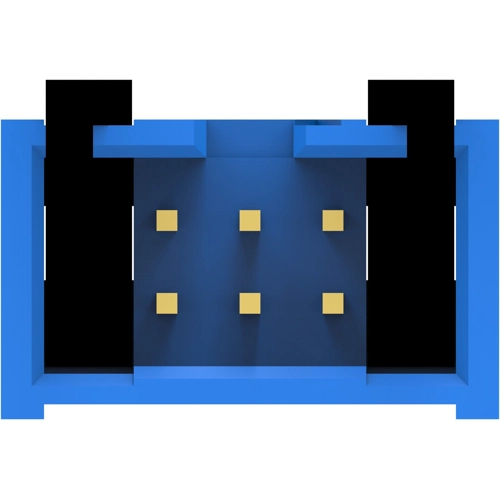

Pin header, 6 pole, pitch 2.54 mm, straight, blue, 2-1761606-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.3197 € *
Available in 12 Days: 578 pcs. - if ordered today
Pin header, 2-1761606-1, AMP
Wire-to-Board, 6-Positions, 2.54 mm Centerline, Vertical, Through Hole - Solder, 2 Row, Plug.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
