2-1761605-6 | AMP

Pin header, 16 pole, pitch 2.54 mm, angled, blue, 2-1761605-6

Order No.: 36P5256
EAN: 4099889942262
MPN:
2-1761605-6
Series: AMP-LATCH

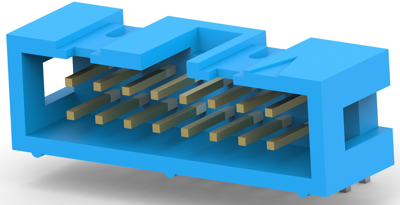

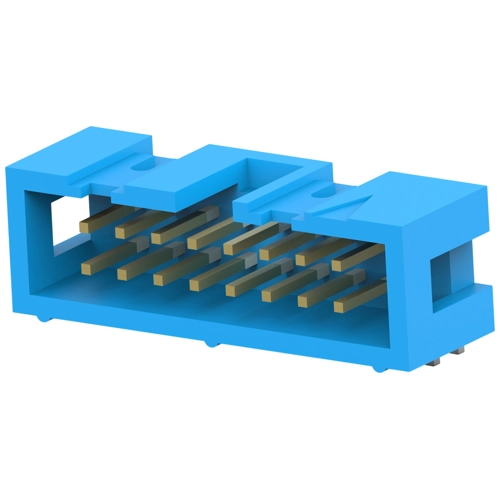

2-1761605-6 AMP PCB Connection Systems Image 1

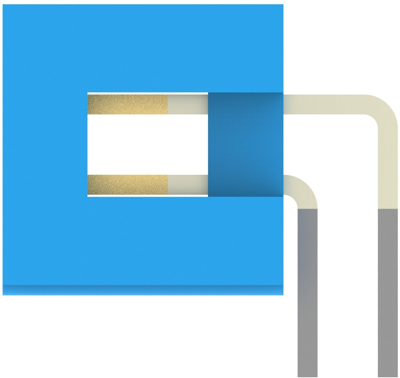

2-1761605-6 AMP PCB Connection Systems Image 2

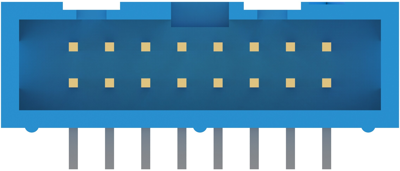

2-1761605-6 AMP PCB Connection Systems Image 3

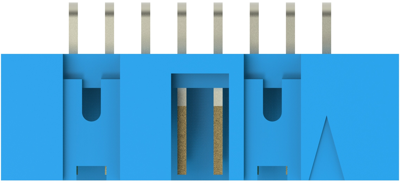

2-1761605-6 AMP PCB Connection Systems Image 4

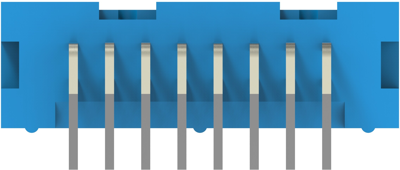

2-1761605-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.9024 € *
Available in 5 Days: 1,182 pcs. - if ordered today
Total Price:
5.90 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9024 €
10 pcs.
5.4264 €
50 pcs.
4.8909 €
100 pcs.
4.3911 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1761605-6, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT
  • Housing Color: blue
  • Orientation: angled
  • Number of positions: 16
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Contact type pin
Pin number 16 pole
Grid 2.54 mm
Colour blue
Version pin header
Connection PCB connection
Connection plating tin-plated
Rated voltage 250 V
Rated current 1 A
Orientation angled
Number of rows 2
contact surface gold-plated
Additional parts equipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
