2-1761603-6 | AMP

Pin header, 16 pole, pitch 2.54 mm, straight, blue, 2-1761603-6

Order No.: 56F6374
EAN: 4099891001414
MPN:
2-1761603-6
Series: AMP-LATCH

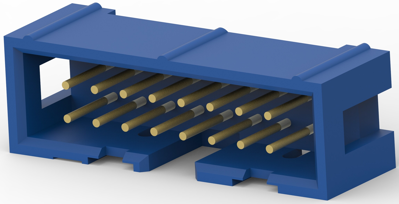

2-1761603-6 AMP PCB Connection Systems Image 1

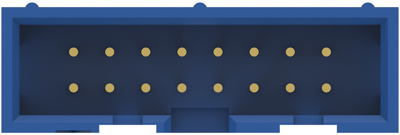

2-1761603-6 AMP PCB Connection Systems Image 2

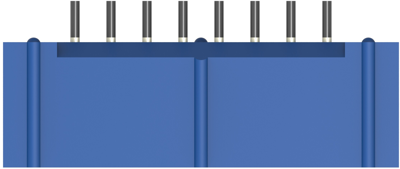

2-1761603-6 AMP PCB Connection Systems Image 3

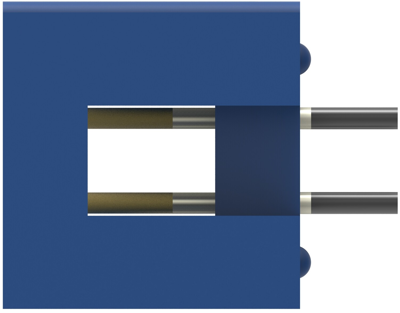

2-1761603-6 AMP PCB Connection Systems Image 4

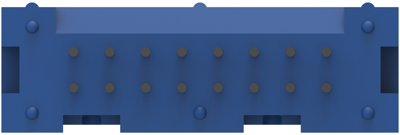

2-1761603-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.8076 € *
Available in 5 Days: 3,441 pcs. - if ordered today
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8076 €
10 pcs.
4.4268 €
50 pcs.
3.9865 €
100 pcs.
3.5819 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connectors with straight 2.6 mm terminal pins, type ..-176.

Contacts: phosphor bronze over gold-plated nickel. Housing: GV thermoplastic. Color: blue.

Type: 2–1761603–6, 16–pole, A 27.94, B 25.40, C 17.75 mm

Technical specifications
Rated current 1 A
Version pin header
Contact type pin
Number of rows 2
Pin number 16 pole
Additional parts equipped
Rated voltage 250 V
Type of locking Yes
Orientation straight
Grid 2.54 mm
Colour blue
Connection plating tin-plated
Connection PCB connection
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
