2-1717834-4 | AMP

Socket header, 8 pole, pitch 2.5 mm, straight, black, 2-1717834-4

Order No.: 38P6884
EAN: 4099889973655
MPN:
2-1717834-4
AMP

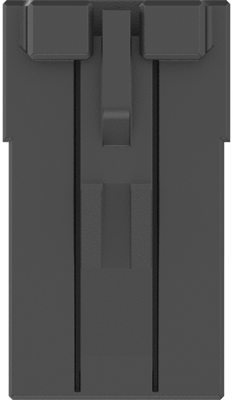

2-1717834-4 AMP PCB Connection Systems Image 1

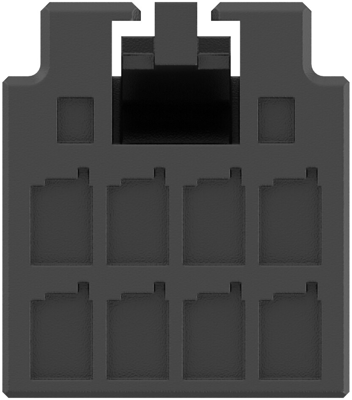

2-1717834-4 AMP PCB Connection Systems Image 2

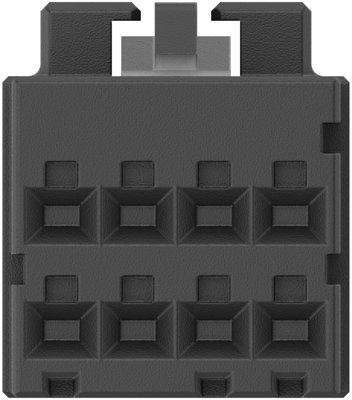

2-1717834-4 AMP PCB Connection Systems Image 3

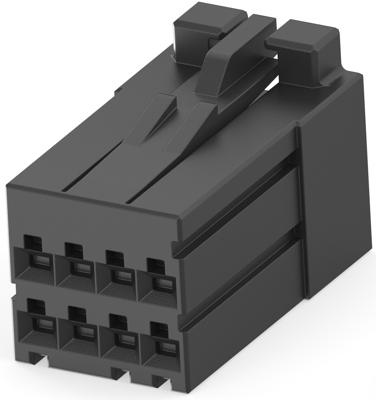

2-1717834-4 AMP PCB Connection Systems Image 4

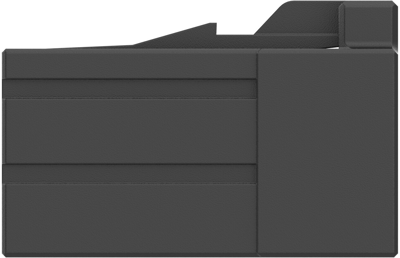

2-1717834-4 AMP PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version socket header
Contact type socket
Pin number 8 pole
Grid 2.5 mm
Connection crimp connection
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
1.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0829 €
Description
Technical specifications
Download
Logistics
Compliance

PCB Connection System, 2-1717834-4, AMP

Wire-to-Wire, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.75 mm [0.147 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour black
Type of locking Yes
Grid 2.5 mm
Pin number 8 pole
Version socket header
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 150 V
Number of rows 2
Articles of same specification 0
Logistics
Country of origin MX
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
