2-1658527-2 | AMP

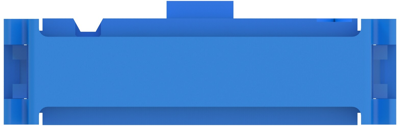

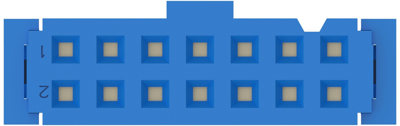

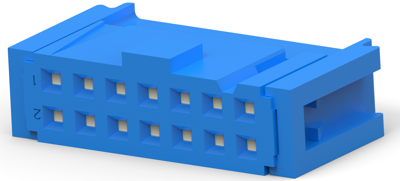

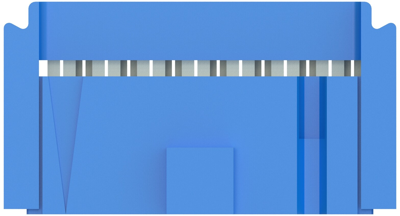

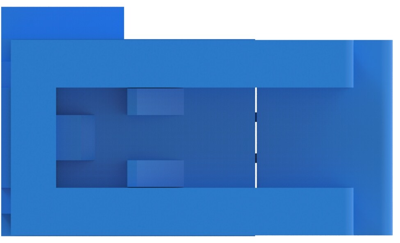

Socket housing, 14 pole, pitch 2.54 mm, straight, blue, 2-1658527-2
Unit Price (€ / pc.)
5.7001 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
5.70 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7001 €
10 pcs.
5.2955 €
25 pcs.
4.9385 €
50 pcs.
4.4863 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-1658527-2, AMP
Wire-to-Board, Wire & Cable, 14 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Color: blue
- Number of positions: 14
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Rated current: 1 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Connection plating | gold-plated | |
| contact surface | gold-plated | |
| Version | socket housing | |
| Rated current | 1 A | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | blue | |
| Pin number | 14 pole | |
| Connection | IDC connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
