2-1658016-3 | AMP

Pin header, 120 pole, pitch 0.8 mm, straight, black, 2-1658016-3

Order No.: 36P9413
EAN: 4099889950175
MPN:
2-1658016-3

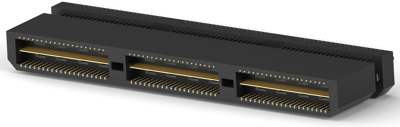

2-1658016-3 AMP PCB Connection Systems Image 1

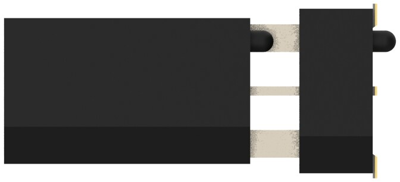

2-1658016-3 AMP PCB Connection Systems Image 2

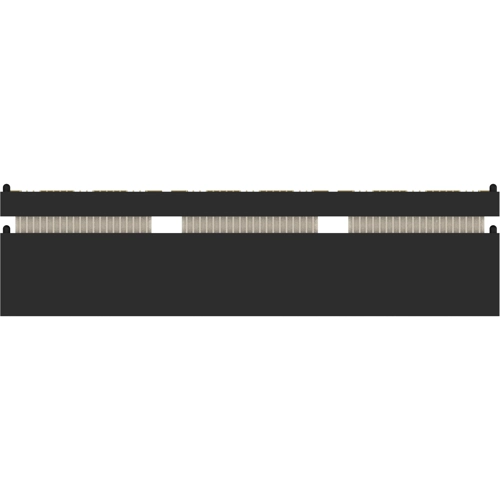

2-1658016-3 AMP PCB Connection Systems Image 3
2-1658016-3 AMP PCB Connection Systems Image 4
2-1658016-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
50.1942 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
50.19 € *
Price list
Quantity
Price per unit*
1 pcs.
50.1942 €
2 pcs.
48.6948 €
5 pcs.
46.2553 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1658016-3, AMP

Board-to-Board, Printed Circuit Board, Standard, Vertical, 120 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 120
  • Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Colour black
contact surface gold-plated
Rated current 9.5 A
Grid 0.8 mm
Connection plating gold-plated
Pin number 120 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 125 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
