2-1658013-2 | AMP

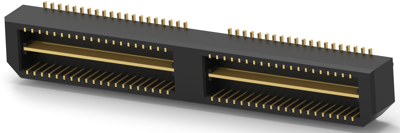

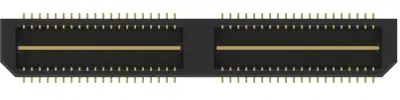

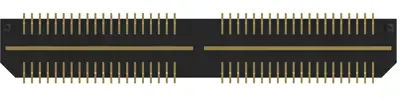

Pin header, 80 pole, pitch 0.8 mm, straight, black, 2-1658013-2
Order No.: 71P5071
EAN: 4099891725396
MPN:
2-1658013-2
Unit Price (€ / pc.)
17.9214 € *
Available in 5 Days: 240 pcs. - if ordered today
Total Price:
17.92 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9214 €
10 pcs.
16.6362 €
25 pcs.
15.5295 €
50 pcs.
14.1134 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 2-1658013-2, AMP
The 2-1658013-2 is a microstrip style connector consisting of two rows of signal contact divided by a center power ground bar. This product includes competitive pricing and shorter lead time while providing hybrid functionality of signal and power.
Features
- Dedicate ground bar
- 2-piece connector
- Various stack heights
Applications
- Server/Storage/Switch
- Industrial PC
- Automotive infotainment
- Industrial high speed camera
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 9.5 A | |
| Grid | 0.8 mm | |
| Connection plating | gold-plated | |
| Pin number | 80 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | SMD | |
| Contact type | pin | |
| Rated voltage | 125 V | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
