2-1586018-0 | AMP

Plug housing, 20 pole, pitch 4.2 mm, straight, white, 2-1586018-0

Order No.: 35P5481
EAN: 4099889939019
MPN:
2-1586018-0
Series: VAL-U-LOK

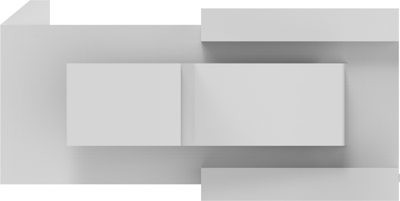

2-1586018-0 AMP PCB Connection Systems Image 1

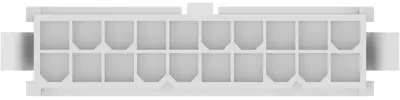

2-1586018-0 AMP PCB Connection Systems Image 2

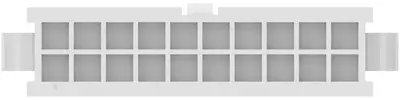

2-1586018-0 AMP PCB Connection Systems Image 3

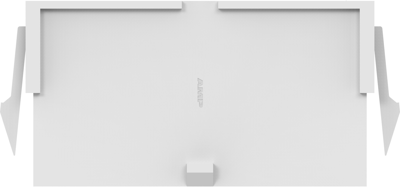

2-1586018-0 AMP PCB Connection Systems Image 4

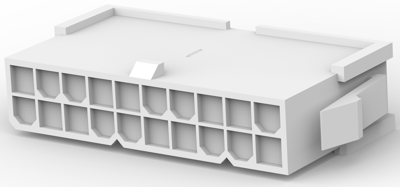

2-1586018-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1586018-0, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 20
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour white
Type of locking Yes
Rated current 9 A
Grid 4.2 mm
Pin number 20 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin SG
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
