2-1586000-0 | AMP

Plug housing, 20 pole, pitch 4.2 mm, straight, natural, 2-1586000-0

Order No.: 71F5864
EAN: 4099891010911
MPN:
2-1586000-0
Series: VAL-U-LOK

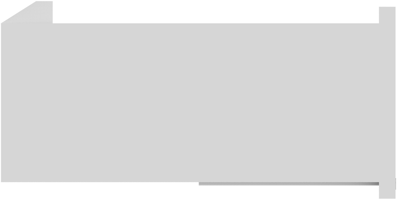

2-1586000-0 AMP PCB Connection Systems Image 1

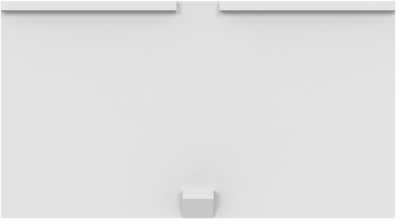

2-1586000-0 AMP PCB Connection Systems Image 2

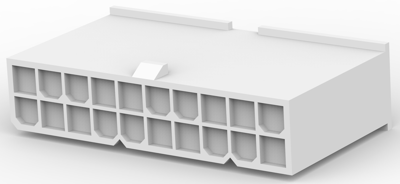

2-1586000-0 AMP PCB Connection Systems Image 3

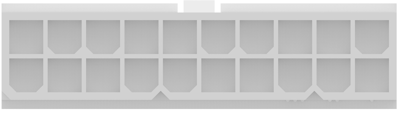

2-1586000-0 AMP PCB Connection Systems Image 4

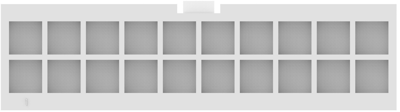

2-1586000-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3808 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2951 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.

4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.

Male connector housings, dual-row, bare, type ..-1586000.

Technical attributes (type, number of poles, dimension A): 2-1586000-0, 20-pole, A 43.2 mm

Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type pin
Version plug housing
Rated current 9 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 20 pole
Connection crimp connection
Logistics
Property Value
Country of origin JP
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
