2-1445096-5 | AMP

Pin header, 5 pole, pitch 3 mm, straight, black, 2-1445096-5

Order No.: 34P9391
EAN: 4099889918908
MPN:
2-1445096-5

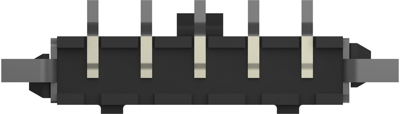

2-1445096-5 AMP PCB Connection Systems Image 1

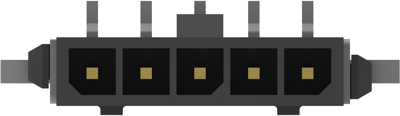

2-1445096-5 AMP PCB Connection Systems Image 2

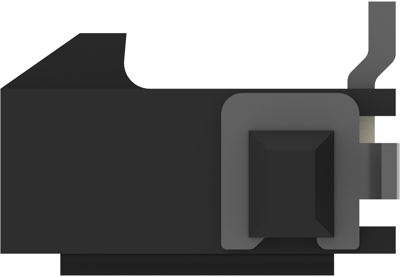

2-1445096-5 AMP PCB Connection Systems Image 3

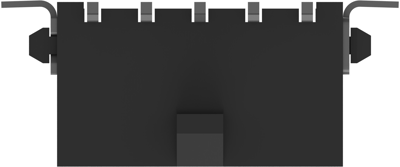

2-1445096-5 AMP PCB Connection Systems Image 4

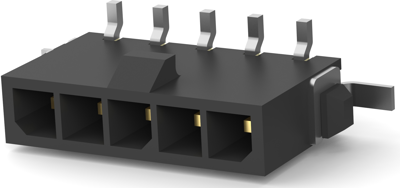

2-1445096-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5708 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
989.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
630 pcs.
1.5708 €

PCB Connection System, 2-1445096-5, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 5 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: High Temperature Nylon
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 5
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 3 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 3 mm
Pin number 5 pole
Colour black
Connection plating tin-plated
Contact type pin
Rated current 5 A
Version pin header
Connection SMD
Additional parts equipped
Number of rows 1
Rated voltage 150 V
contact surface gold-plated
Orientation straight
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366910
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
