2-1445096-4 | AMP

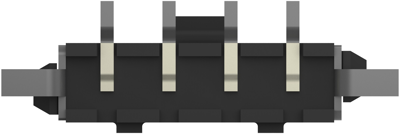

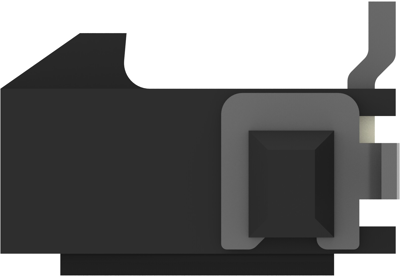

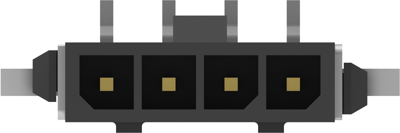

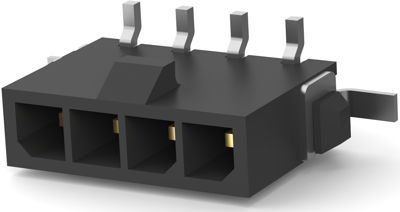

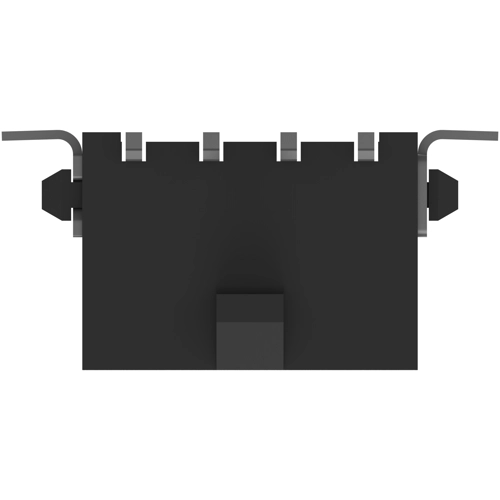

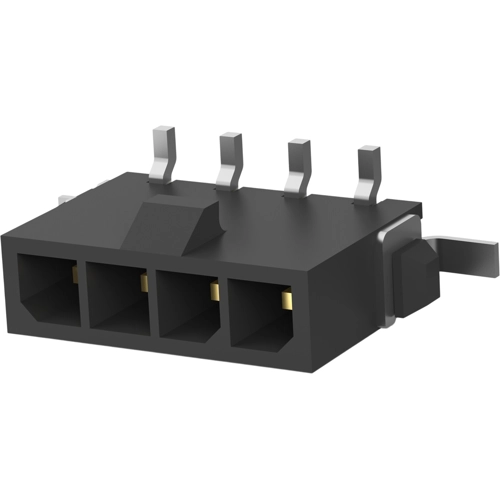

Pin header, 4 pole, pitch 3 mm, straight, black, 2-1445096-4
Unit Price (€ / pc.)
2.1896 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
10.95 € *
Price list
Quantity
Price per unit*
5 pcs.
2.1896 €
10 pcs.
2.0230 €
25 pcs.
1.8921 €
50 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-1445096-4, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 5 A | |
| Rated voltage | 150 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 4 pole | |
| Connection | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
