2-1445084-5 | AMP

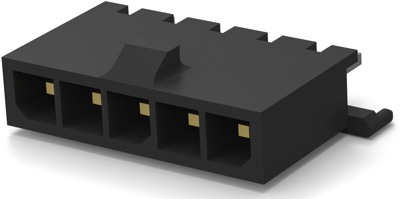

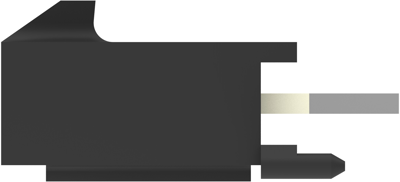

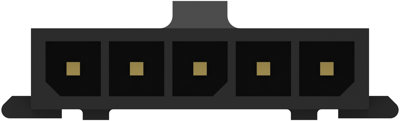

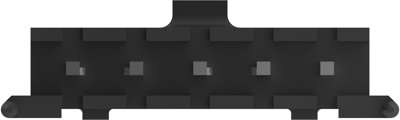

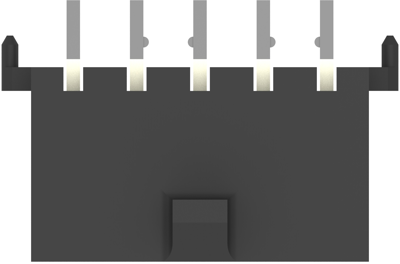

Pin header, 5 pole, pitch 3 mm, straight, black, 2-1445084-5
Order No.: 34P9305
EAN: 4099889918137
MPN:
2-1445084-5
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
PCB Connection System, 2-1445084-5, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: straight
- Number of positions: 5
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 5-polig | |
| Grid | 3 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | vergoldet | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 5 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | schwarz |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
