2-1445055-6 | AMP

Pin header, 6 pole, pitch 3 mm, angled, black, 2-1445055-6

Order No.: 71F5738
EAN: 4099891010416
MPN:
2-1445055-6

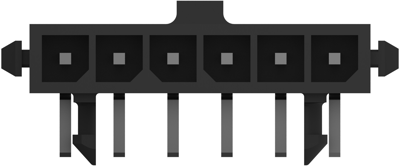

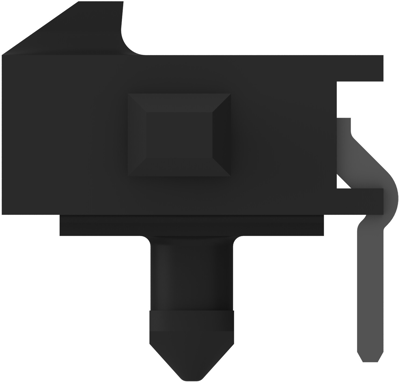

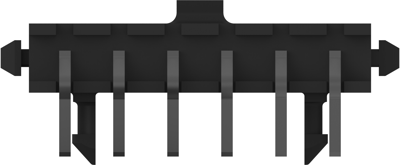

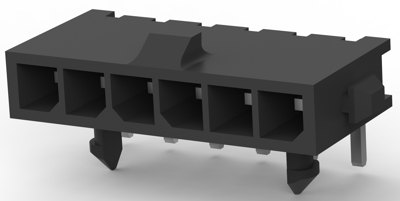

2-1445055-6 AMP PCB Connection Systems Image 1
2-1445055-6 AMP PCB Connection Systems Image 2
2-1445055-6 AMP PCB Connection Systems Image 3
2-1445055-6 AMP PCB Connection Systems Image 4
2-1445055-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Available in 5 Days: 239 pcs. - if ordered today
Total Price:
11.19 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2372 €
10 pcs.
2.0706 €
25 pcs.
1.9278 €
50 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

Angled single-row PCB sockets, type 2-1445055.

With snap-in holder on the PCB; Housing: Nylon, high temperature-resistant, flame retardant to UL 94 V-0. Contacts: tinned brass.

Technical attributes (type, number of poles, length): 2-1445055-6, 6-pole, L 22.14 mm

Technical specifications
Filter Property Value
Grid 3 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 6 pole
Connection solder pin
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
