2-1445055-3 | AMP

Pin header, 3 pole, pitch 3 mm, angled, black, 2-1445055-3

Order No.: 71F5732
EAN: 4099891010386
MPN:
2-1445055-3

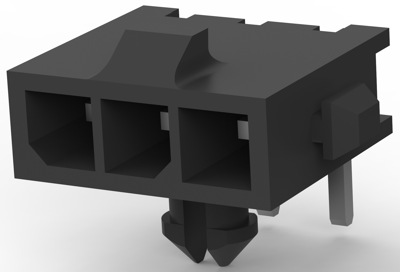

2-1445055-3 AMP PCB Connection Systems Image 1

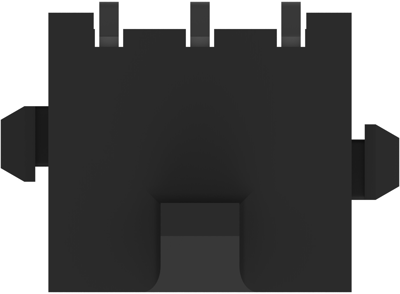

2-1445055-3 AMP PCB Connection Systems Image 2

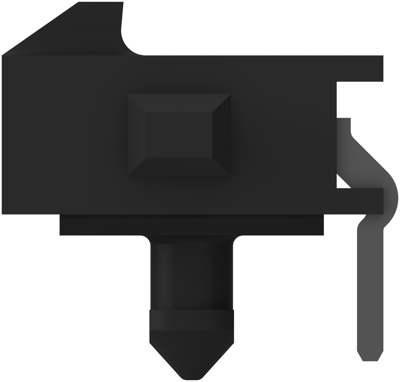

2-1445055-3 AMP PCB Connection Systems Image 3

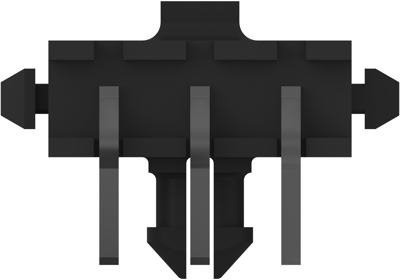

2-1445055-3 AMP PCB Connection Systems Image 4

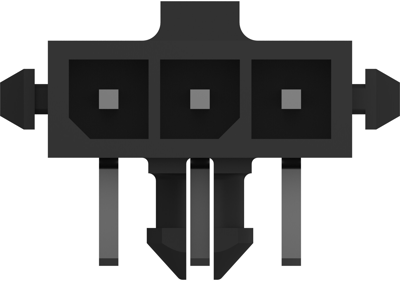

2-1445055-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5232 €
10 pcs.
1.4161 €
25 pcs.
1.3090 €
50 pcs.
1.1900 €
*incl. VAT plus shipping costs
Subject to prior sale

Angled single-row PCB sockets, type 2-1445055.

With snap-in holder on the PCB; Housing: Nylon, high temperature-resistant, flame retardant to UL 94 V-0. Contacts: tinned brass.

Technical attributes (type, number of poles, length): 2-1445055-3, 3-pole, L 13.14 mm

Technical specifications
Filter Property Value
Grid 3 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 3 pole
Connection solder pin
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Original Packaging Tray with 266 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
