2-1445050-8 | AMP

Pin header, 8 pole, pitch 3 mm, straight, black, 2-1445050-8

Order No.: 34P9353
EAN: 4099889918557
MPN:
2-1445050-8

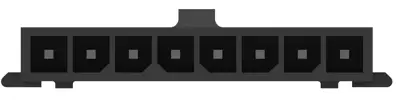

2-1445050-8 AMP PCB Connection Systems Image 1

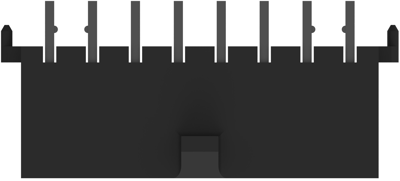

2-1445050-8 AMP PCB Connection Systems Image 2

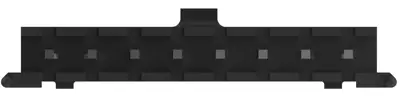

2-1445050-8 AMP PCB Connection Systems Image 3

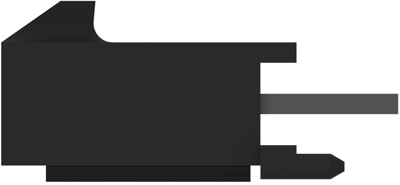

2-1445050-8 AMP PCB Connection Systems Image 4

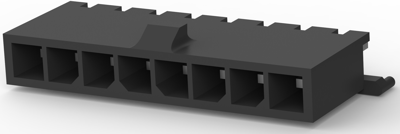

2-1445050-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7251 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.5347 €
25 pcs.
2.3562 €
50 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1445050-8, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: High Temperature Nylon
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 3 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 3 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 8 pole
Connection PCB connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
