2-1376388-3 | AMP

Plug housing, 2 pole, pitch 5 mm, straight, blue, 2-1376388-3

Order No.: 35P3773
EAN: 4099889931372
MPN:
2-1376388-3

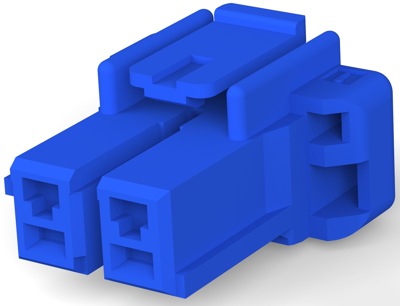

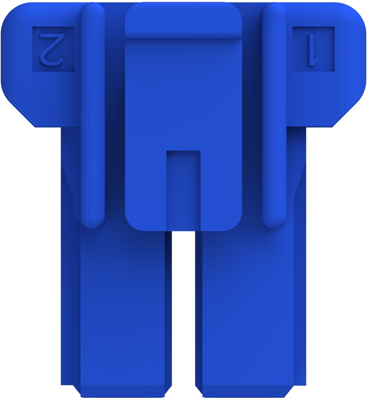

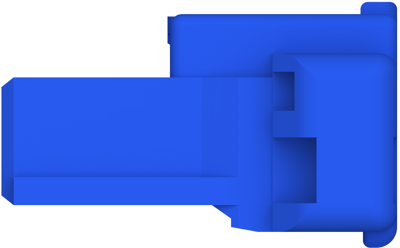

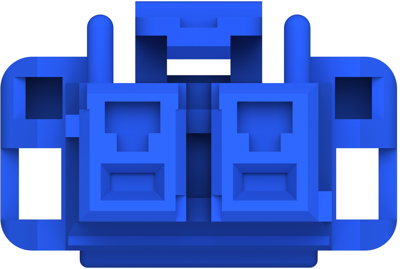

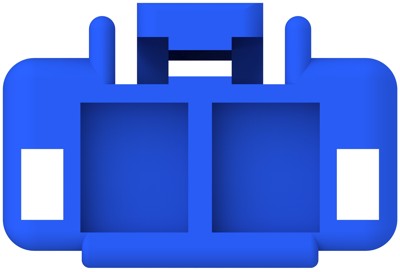

2-1376388-3 AMP PCB Connection Systems Image 1
2-1376388-3 AMP PCB Connection Systems Image 2
2-1376388-3 AMP PCB Connection Systems Image 3
2-1376388-3 AMP PCB Connection Systems Image 4
2-1376388-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4760 €
10 pcs.
0.4403 €
25 pcs.
0.4046 €
50 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1376388-3, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6 GF
  • Housing Color: blue
  • Number of positions: 2
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 10 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 5 mm
Contact type socket
Version plug housing
Rated current 10 A
Rated voltage 150 V
Orientation straight
Additional parts unequipped
Number of rows 1
Colour blue
Pin number 2 pole
Connection crimp connection
Logistics
Property Value
Country of origin JP
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
