2-1376386-3 | AMP

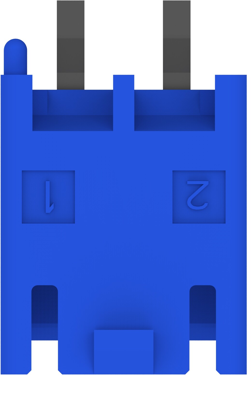

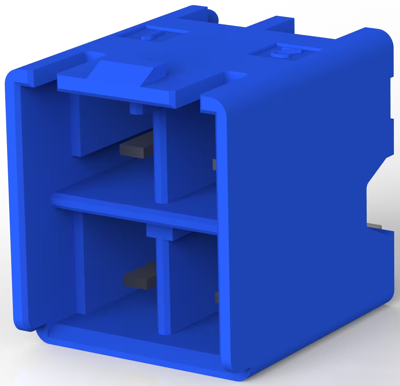

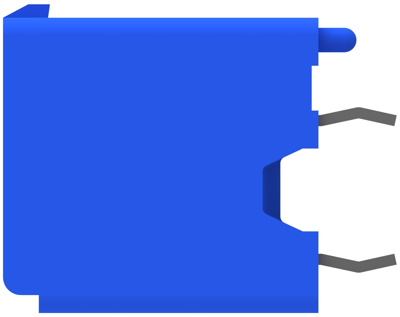

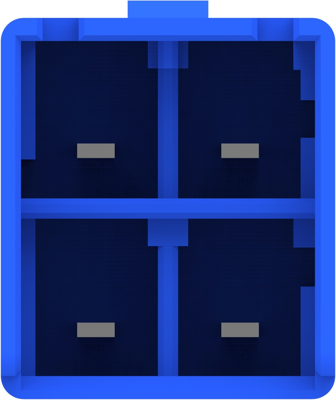

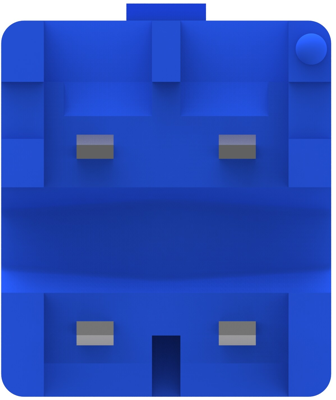

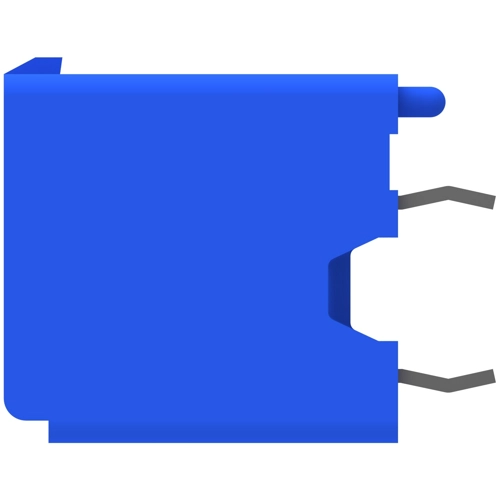

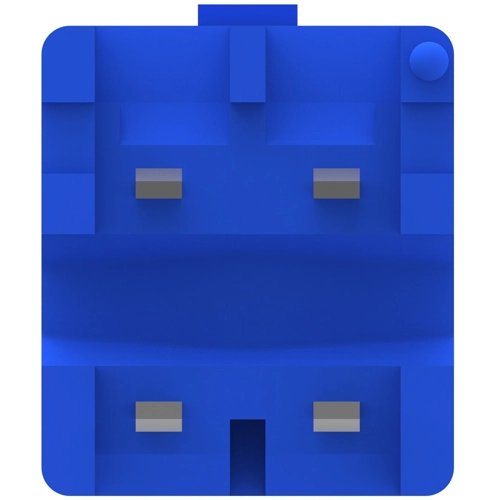

Pin header, 4 pole, pitch 5 mm, straight, blue, 2-1376386-3
Unit Price (€ / pc.)
1.0115 € *
Available in 5 Days: 20,252 pcs. - if ordered today
Total Price:
202.30 € *
Price list
Quantity
Price per unit*
200 pcs.
1.0115 €
450 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
Power key connector, 2-1376386-3, AMP
The 2-1376386-3 is built to optimize contact seating and proper mating to the PCB header, with design features that permit the release of bubbles created by the PCB potting process. This product uses housing lances to prevent tangling of wired contacts, and consists of plug housings for wire and compact wire-to-board PCB header assemblies.
Features
- Locking levers are surrounded by walls, which protect levers and prevent tangling with wires
- Power circuit connector with 5.0 mm contact centerline
Applications
- Household appliances
- Gas appliances
- Power cord application
- Control boards across various industries
Technical specifications
| Colour | blue | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 9 A | |
| Grid | 5 mm | |
| Connection plating | tin-plated | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | tab | |
| Rated voltage | 300 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
