2-1318115-4 | AMP

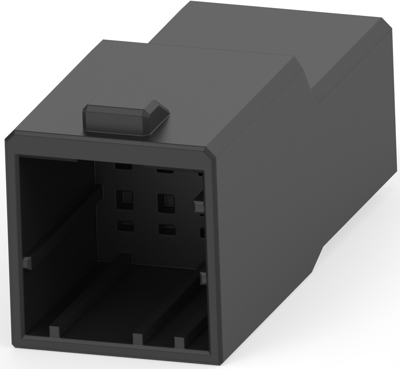

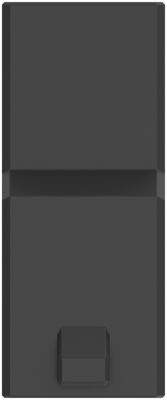

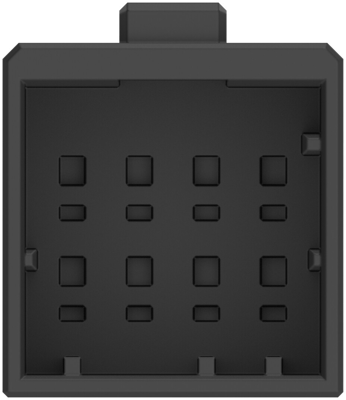

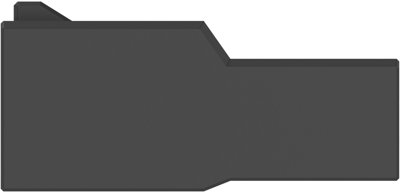

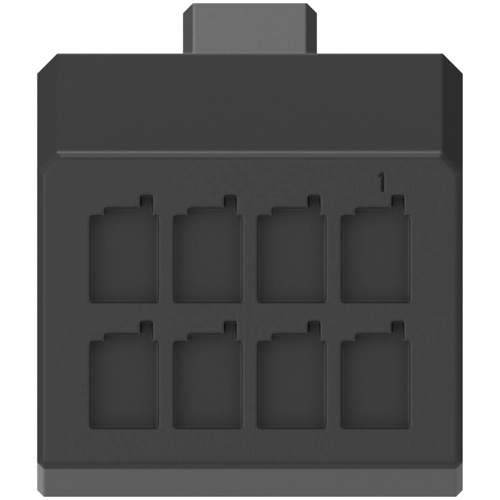

Plug housing, 8 pole, pitch 2.5 mm, straight, black, 2-1318115-4
Unit Price (€ / pc.)
0.8092 € *
Available in 5 Days: 1,414 pcs. - if ordered today
PCB Connection System, 2-1318115-4, AMP
Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 3.75 mm [0.147 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | black | |
| Rated voltage | 150 V | |
| Connection | crimp connection | |
| Pin number | 8 pole | |
| Type of locking | Yes | |
| Grid | 2.5 mm | |
| Version | plug housing | |
| Number of rows | 2 | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
