2-1318114-6 | AMP

Plug housing, 12 pole, pitch 2.5 mm, straight, black, 2-1318114-6

Order No.: 38P6932
EAN: 4099889973945
MPN:
2-1318114-6
Series: DYNAMIC

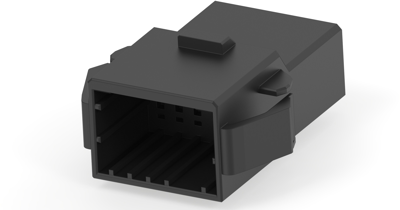

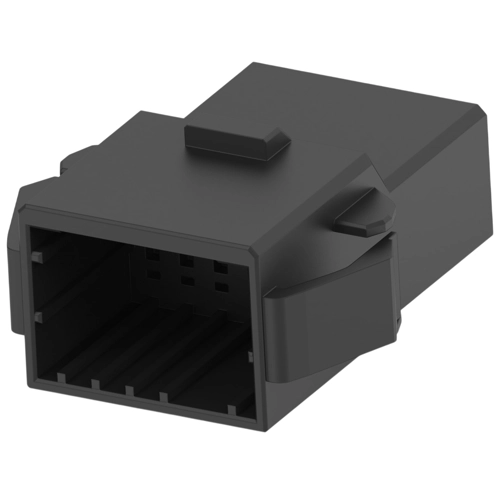

2-1318114-6 AMP PCB Connection Systems Image 1

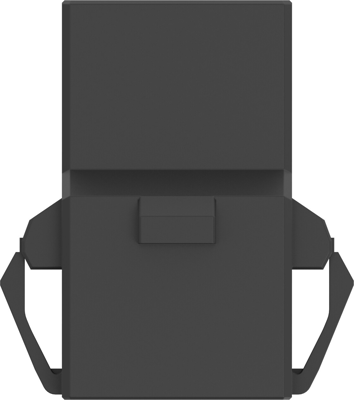

2-1318114-6 AMP PCB Connection Systems Image 2

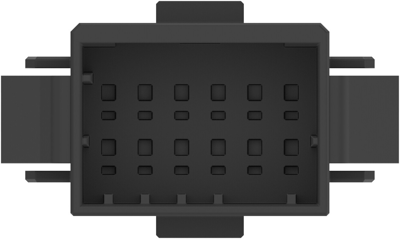

2-1318114-6 AMP PCB Connection Systems Image 3

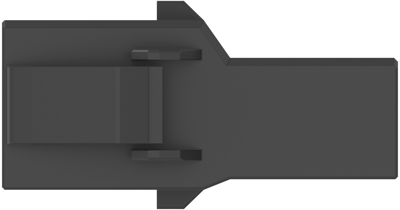

2-1318114-6 AMP PCB Connection Systems Image 4

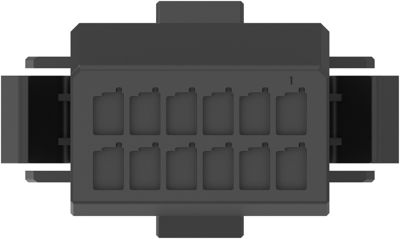

2-1318114-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9758 €
10 pcs.
0.9044 €
25 pcs.
0.8449 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-1318114-6, AMP

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.75 mm [0.147 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 2.5 mm
Contact type pin
Version plug housing
Rated voltage 250 V
Orientation straight
Number of rows 2
Colour black
Pin number 12 pole
Connection crimp connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
