2-1123722-4 | AMP

Plug housing, 4 pole, pitch 3.96 mm, straight, yellow, 2-1123722-4

Order No.: 34P7229
EAN: 4099889914610
MPN:
2-1123722-4
Series: Economy Power

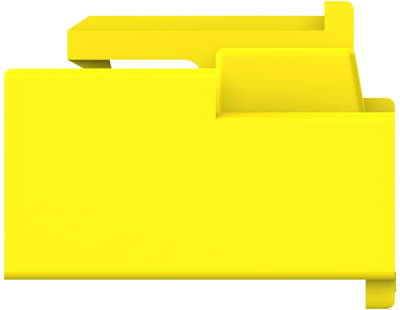

2-1123722-4 AMP PCB Connection Systems Image 1

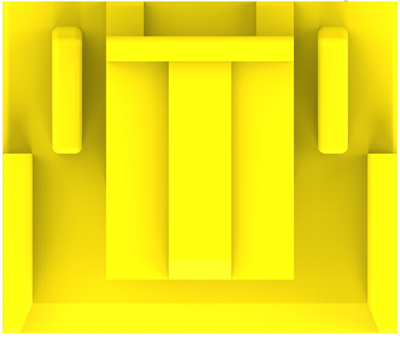

2-1123722-4 AMP PCB Connection Systems Image 2

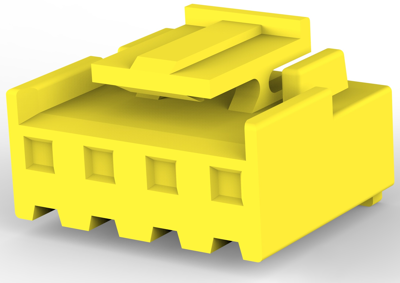

2-1123722-4 AMP PCB Connection Systems Image 3

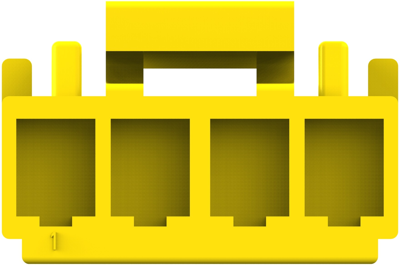

2-1123722-4 AMP PCB Connection Systems Image 4

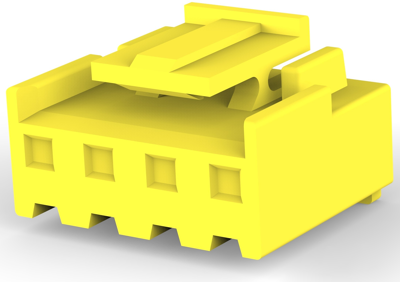

2-1123722-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1178 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,884.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
16000 pcs.
0.1178 €

PCB Connection System, 2-1123722-4, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: yellow
  • Number of positions: 4
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour yellow
Type of locking Yes
Rated current 8 A
Grid 3.96 mm
Pin number 4 pole
Version plug housing
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin IT
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
