2-111623-0 | AMP

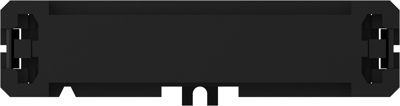

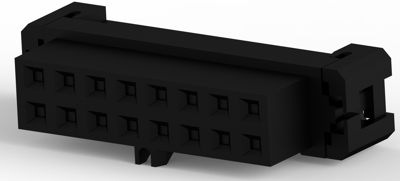

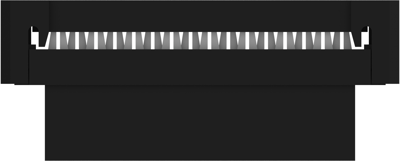

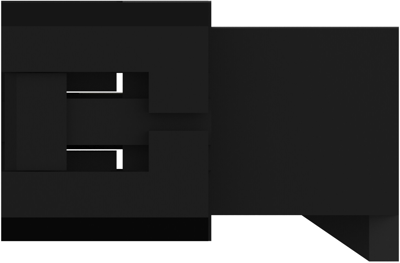

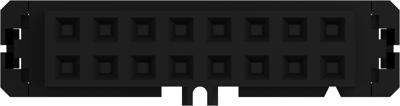

Socket header, 16 pole, pitch 2 mm, straight, black, 2-111623-0
Unit Price (€ / pc.)
5.3669 € *
Standard delivery time from the manufacturer is: 12 Weeks
PCB Connection System, 2-111623-0, AMP
Wire-to-Board, Wire & Cable, 16 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester
- Housing Color: black
- Number of positions: 16
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 500 mA | |
| contact surface | tin-lead | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Connection | IDC connection | |
| Pin number | 16 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
