2-111446-1 | AMP

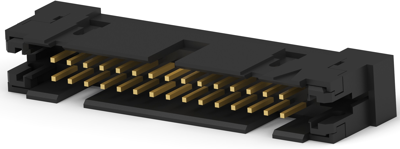

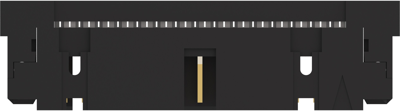

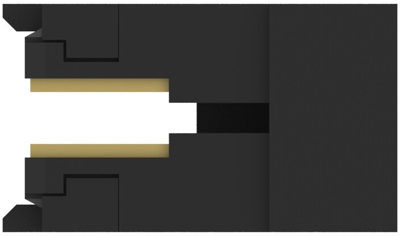

Pin header, 30 pole, pitch 2.54 mm, straight, black, 2-111446-1
Unit Price (€ / pc.)
8.8774 € *
Available in 5 Days: 47 pcs. - if ordered today
Male connectors, insulation displacement technology
Consisting of plug subpart with male contacts and the upper part with integrated strain relief. Without mounting flange; Housing: thermoplastic polyester, black, compliant with UL 94 V-0. Contact material: tin bronze, in the contact area gold-plated on nickel primer, in the insulation displacement area tinned over nickel. Grid: 2.54 x 2.54 mm.
number of poles: 30-pole
dimensions: A 50.6, B 52.63 mm
type: 2-111446-1
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated current | 1 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 30 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
