2-111446-0 | AMP

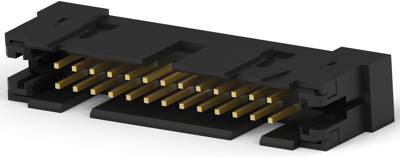

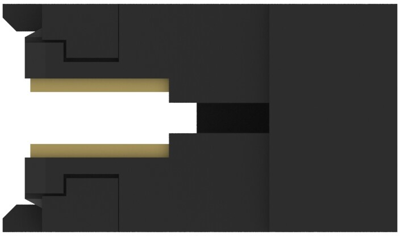

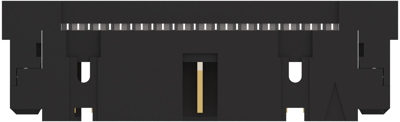

Pin header, 26 pole, pitch 2.54 mm, straight, black, 2-111446-0
Unit Price (€ / pc.)
15.6842 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
15.68 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6842 €
5 pcs.
14.8750 €
10 pcs.
13.9111 €
25 pcs.
12.6854 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connectors, insulation displacement technology
Consisting of plug subpart with male contacts and the upper part with integrated strain relief. Without mounting flange; Housing: thermoplastic polyester, black, compliant with UL 94 V-0. Contact material: tin bronze, in the contact area gold-plated on nickel primer, in the insulation displacement area tinned over nickel. Grid: 2.54 x 2.54 mm.
number of poles: 26-pole
dimensions: A 45.52, B 47.55 mm
type: 2-111446-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Contact type | pin | |
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 26 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
