2-106527-4 | AMP

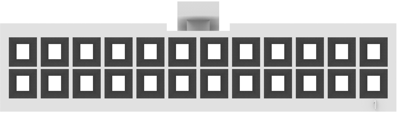

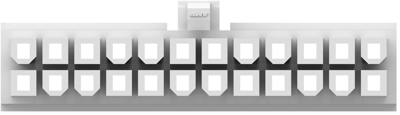

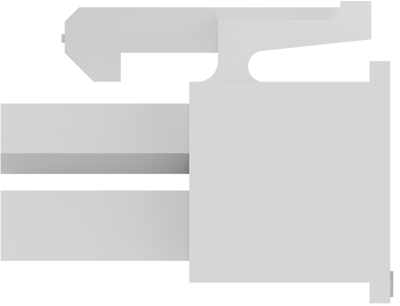

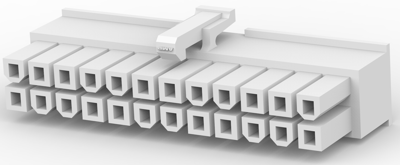

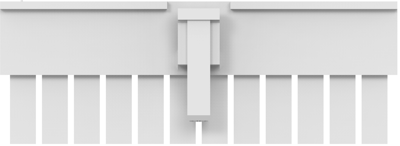

Connector, 24 pole, pitch 4.2 mm, straight, natural, 2-106527-4
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 1,651 pcs. - if ordered today
Total Price:
214.20 € *
Price list
Quantity
Price per unit*
300 pcs.
0.7140 €
650 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 2-106527-4, AMP
The 2-106527-4 provides for low insertion force, yet maintains high-performance current capacity. ormance current capacity.
Features
- Designed for power applications
- Anti-stubbing contact design
- Polarized housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connector | |
| Contact type | socket | |
| Pin number | 24 pole | |
| Grid | 4.2 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Number of rows | 2 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | not_specified |
