1969800-1 | AMP

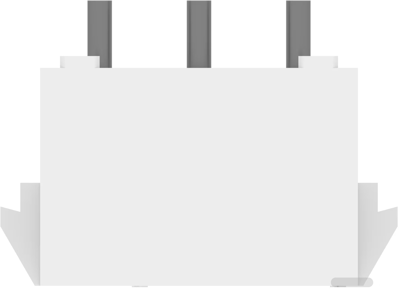

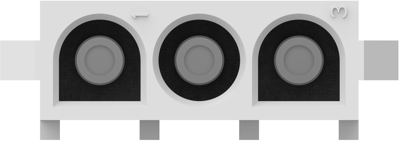

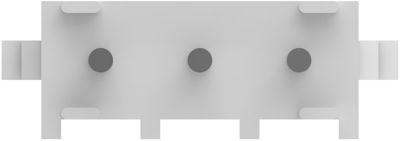

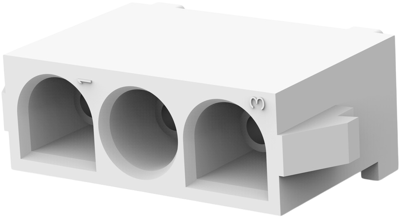

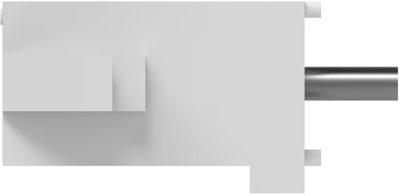

Pin header, 3 pole, pitch 6.35 mm, straight, natural, 1969800-1
Unit Price (€ / pc.)
0.4879 € *
Available in 5 Days: 2,400 pcs. - if ordered today
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.4284 €
50 pcs.
0.3808 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1969800-1, AMP
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 6.35 mm Centerline, Fully Shrouded, Pre-Tin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | tin-plated | |
| Colour | natural | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 6.35 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | solder connection | |
| Pin number | 3 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
