194009-1 | AMP

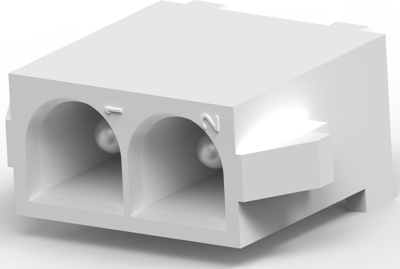

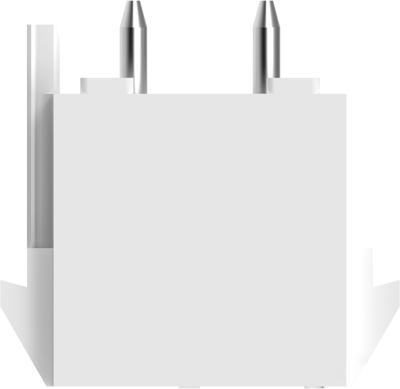

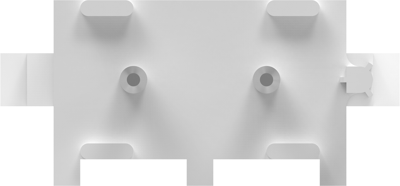

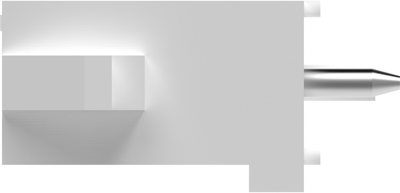

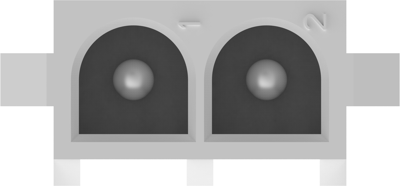

Pin header, 2 pole, pitch 6.35 mm, straight, white, 194009-1
Order No.: 36P8782
EAN: 4099889948967
MPN:
194009-1
Unit Price (€ / pc.)
6.2237 € *
Available in 5 Days: 764 pcs. - if ordered today
Total Price:
6.22 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2237 €
10 pcs.
5.7834 €
25 pcs.
5.3907 €
50 pcs.
4.9028 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 194009-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon GF
- Housing Color: white
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 36 A
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Orientation | straight | |
| Rated voltage | 150 V | |
| Additional parts | equipped | |
| Version | pin header | |
| Rated current | 36 A | |
| Grid | 6.35 mm | |
| Type of locking | Yes | |
| Colour | white | |
| Connection | solder pin | |
| contact surface | silver-plated | |
| Number of rows | 1 | |
| Pin number | 2 pole | |
| Connection plating | silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
