1903601-5 | AMP

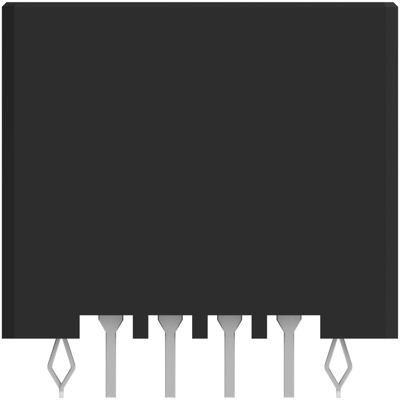

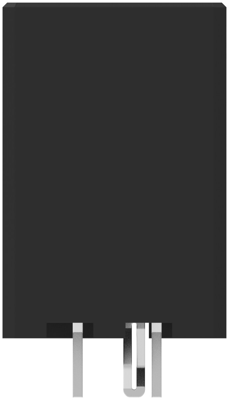

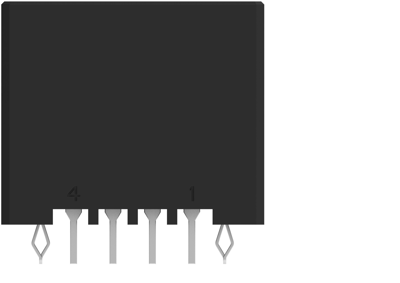

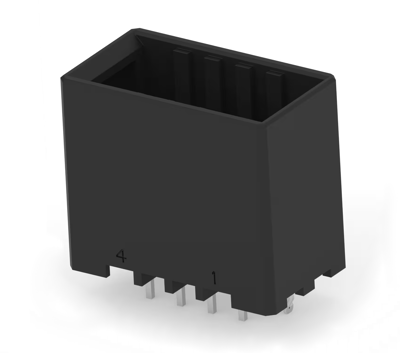

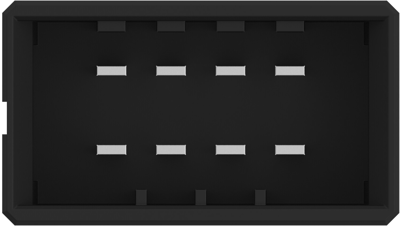

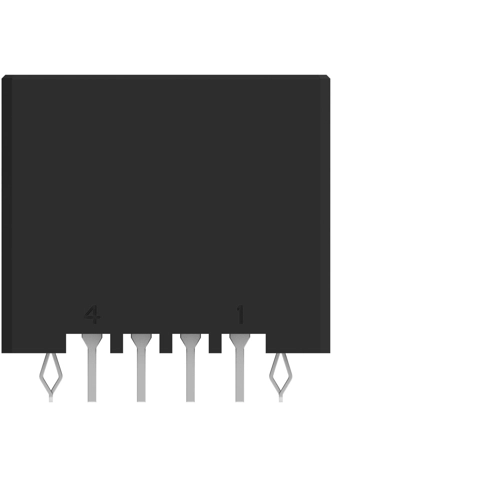

Pin header, 8 pole, pitch 3.81 mm, straight, black, 1903601-5
Order No.: 59F369
MPN:
1903601-5
Unit Price (€ / pc.)
1.9992 € *
Available: 102 pcs.
Available in 5 Days: 3,269 pcs. - if ordered today
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9992 €
10 pcs.
1.8564 €
25 pcs.
1.7255 €
50 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 1903601-5, TE Connectivity
PCB mount header, vertical, Wire-to-Board, 8 Positions, 3.81 mm centerline, Fully Shrouded, Tin (Sn).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 15 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 8 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
