188275-6 | AMP

Socket header, 6 pole, pitch 1.27 mm, straight, red, 188275-6

Order No.: 39P1970
EAN: 4099889978094
MPN:
188275-6
Series: Micro-MaTch

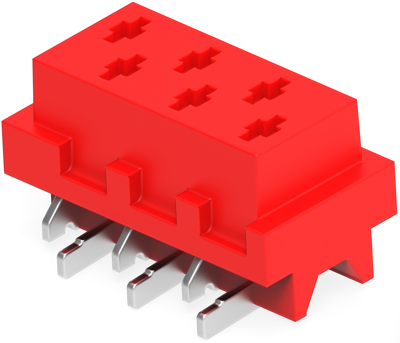

188275-6 AMP PCB Connection Systems Image 1

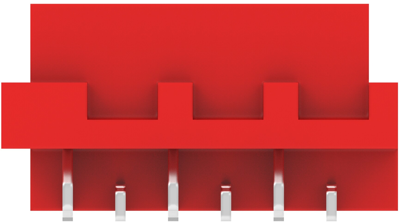

188275-6 AMP PCB Connection Systems Image 2

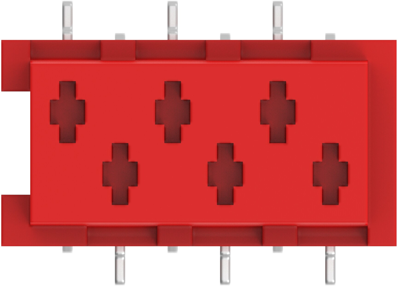

188275-6 AMP PCB Connection Systems Image 3

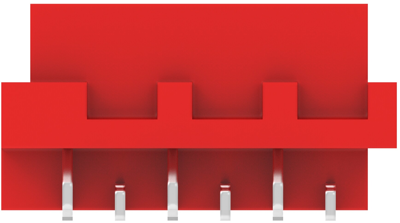

188275-6 AMP PCB Connection Systems Image 4

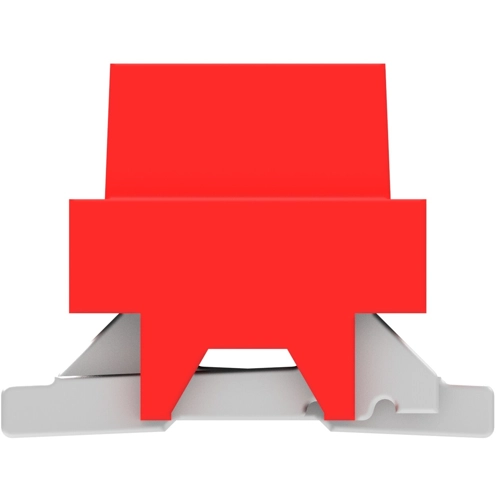

188275-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4042 € *
Available: 370 pcs.
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4042 €
10 pcs.
1.2971 €
25 pcs.
1.2138 €
50 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 188275-6, AMP

Board-to-Board, Printed Circuit Board, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PA 4.6
  • Housing Color: red
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 1.27 mm
  • Row-to-Row Spacing: 2 mm [0.059 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket header
Rated current 1.5 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour red
Pin number 6 pole
Connection SMD
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
