180904 | AMP

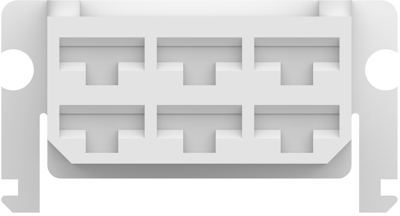

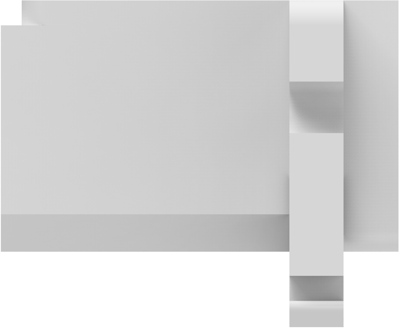

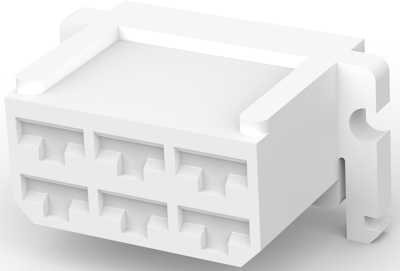

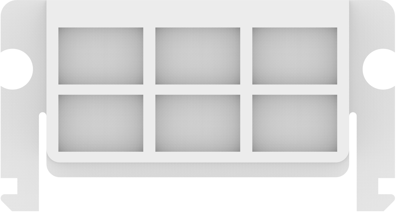

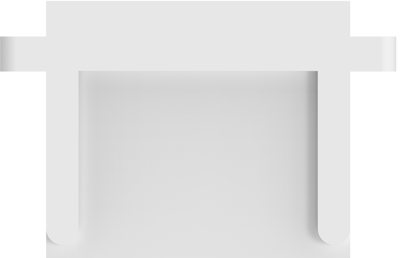

Socket housing, 6 pole, pitch 6.35 mm, straight, natural, 180904
Unit Price (€ / pc.)
0.6545 € *
Available: 291 pcs.
Available in 5 Days: 982 pcs. - if ordered today
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
10 pcs.
0.6069 €
25 pcs.
0.5712 €
50 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale
Crimp Terminal Housings, 180904, AMP
Terminates To: Wire & Cable, Housing Type: Receptacle, Sealable: No, Insulated: No, Number of Crimp Terminal Housing Positions: 6, Crimp Terminal Housing Housing Color: Natural, Crimp Terminal Housing Mating Retention: Without, Crimp Terminal Housing Mating Alignment: With, Terminal & Splice Type: Receptacle, Crimp Terminal Housing Terminal Orientation: Flag, Crimp Terminal Housing Mounting Style: Panel Mount, Crimp Terminal Housing Housing Material: Polyamide, Length: 24.2 mm, Crimp Terminal Housing Centerline: 9.1 mm, Operating Temperature Range: -40 – 105 °C, Packaging Quantity: 700
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Additional parts | unequipped | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Version | socket housing | |
| Pin number | 6 pole | |
| Contact type | socket | |
| Grid | 6.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
