179844-2 | AMP

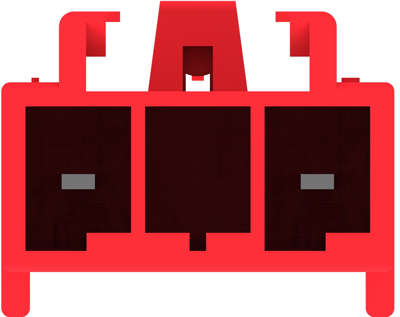

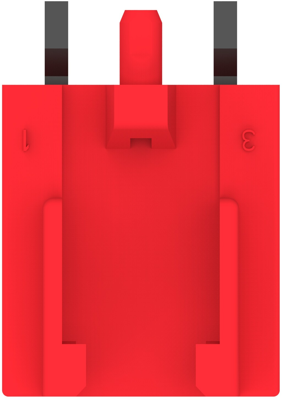

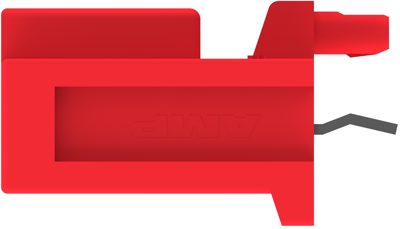

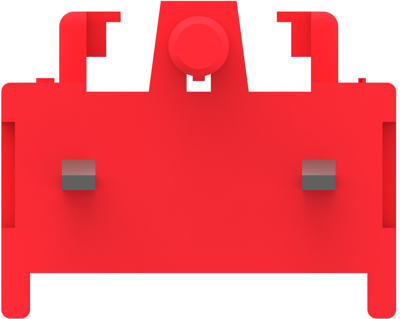

Socket header, 2 pole, pitch 7.92 mm, straight, red, 179844-2
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 3,339 pcs. - if ordered today
Total Price:
221.34 € *
Price list
Quantity
Price per unit*
300 pcs.
0.7378 €
650 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Power double lock connector, 179844-2, AMP
The 179844-2 is a designed for use in power circuit applications and are ideally suited for wiring in refrigerators, air conditioners, washing machines, gas equipment, copying machines and automatic vendingmachines. This product can be used alone by inserting wire-terminated crimp snap-in contacts into the housing.
Features
- Uses double lock plate on the wire side that helps prevent partial mating of contact
- Double lock plate compatible with high-count positions of more than 3 rows
- Design complies with a range of safety standard
- Fully polarized
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.92 mm | |
| Pin number | 2 pole | |
| Colour | red | |
| Connection plating | tin-plated | |
| Contact type | tab | |
| Rated current | 14 A | |
| Version | socket header | |
| Connection | solder connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 300 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
