179840-6 | AMP

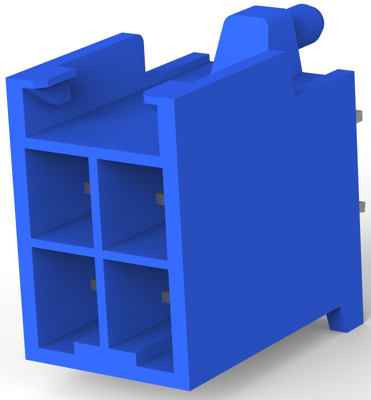

Socket header, 4 pole, pitch 3.96 mm, straight, blue, 179840-6
Unit Price (€ / pc.)
0.4641 € *
Available in 5 Days: 98,000 pcs. - if ordered today
Total Price:
208.85 € *
Price list
Quantity
Price per unit*
450 pcs.
0.4641 €
3000 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale
Power double lock connector, 179840-6, AMP
The 179840-6 is a designed for use in power circuit applications and are ideally suited for wiring in refrigerators, air conditioners, washing machines, gas equipment, copying machines and automatic vendingmachines. This product can be used alone by inserting wire-terminated crimp snap-in contacts into the housing.
Features
- Uses double lock plate on the wire side that helps prevent partial mating of contact
- Double lock plate compatible with high-count positions of more than 3 rows
- Design complies with a range of safety standard
- Fully polarized
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| contact surface | tin-plated | |
| Contact type | tab | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 50 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 4 pole | |
| Additional parts | equipped | |
| Colour | blue | |
| Version | socket header | |
| Rated current | 9 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
